493

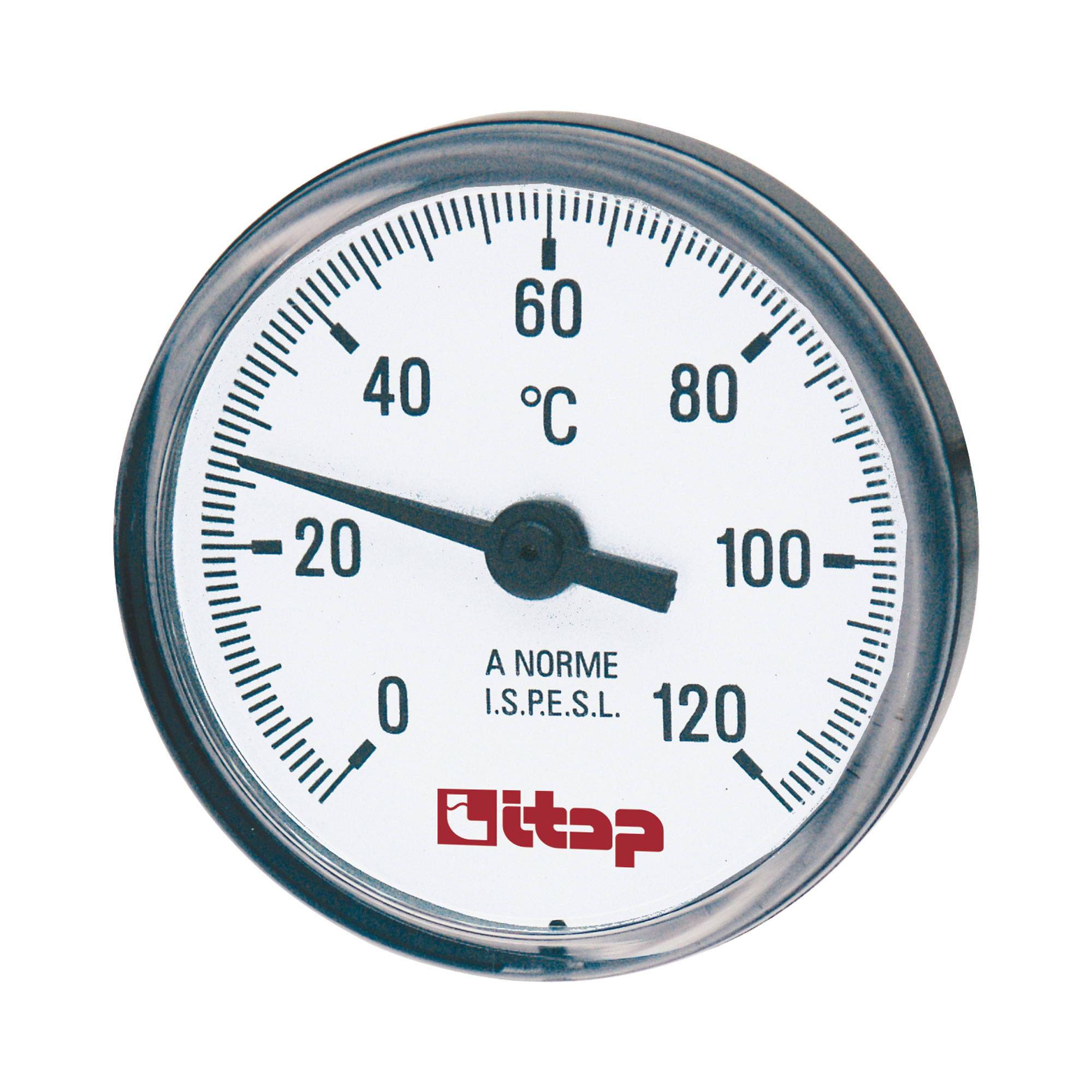

Thermometer, back connection

Complying with INAIL regulation (ex ISPESL).
Available diameters: mm.40, mm.63, mm.80.
Size of the connections: 3/8”, 1/2”.
Pin length: mm. 50 (with ∅ 40 – 63) – mm.100 (with ∅ 80).
Scale: 0°C- 80°C (3/8”) , 0°C-120°C (1/2”).
Taper thread ISO 7/1 R (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizePressureCodePacking
3/8"X4010bar/145psi493B03840P10/340
1/2"X4010bar/145psi493B01240P8/272
1/2"X6310bar/145psi493B01263P4/136
1/2"X8010bar/145psi493B01280P2/38
