951

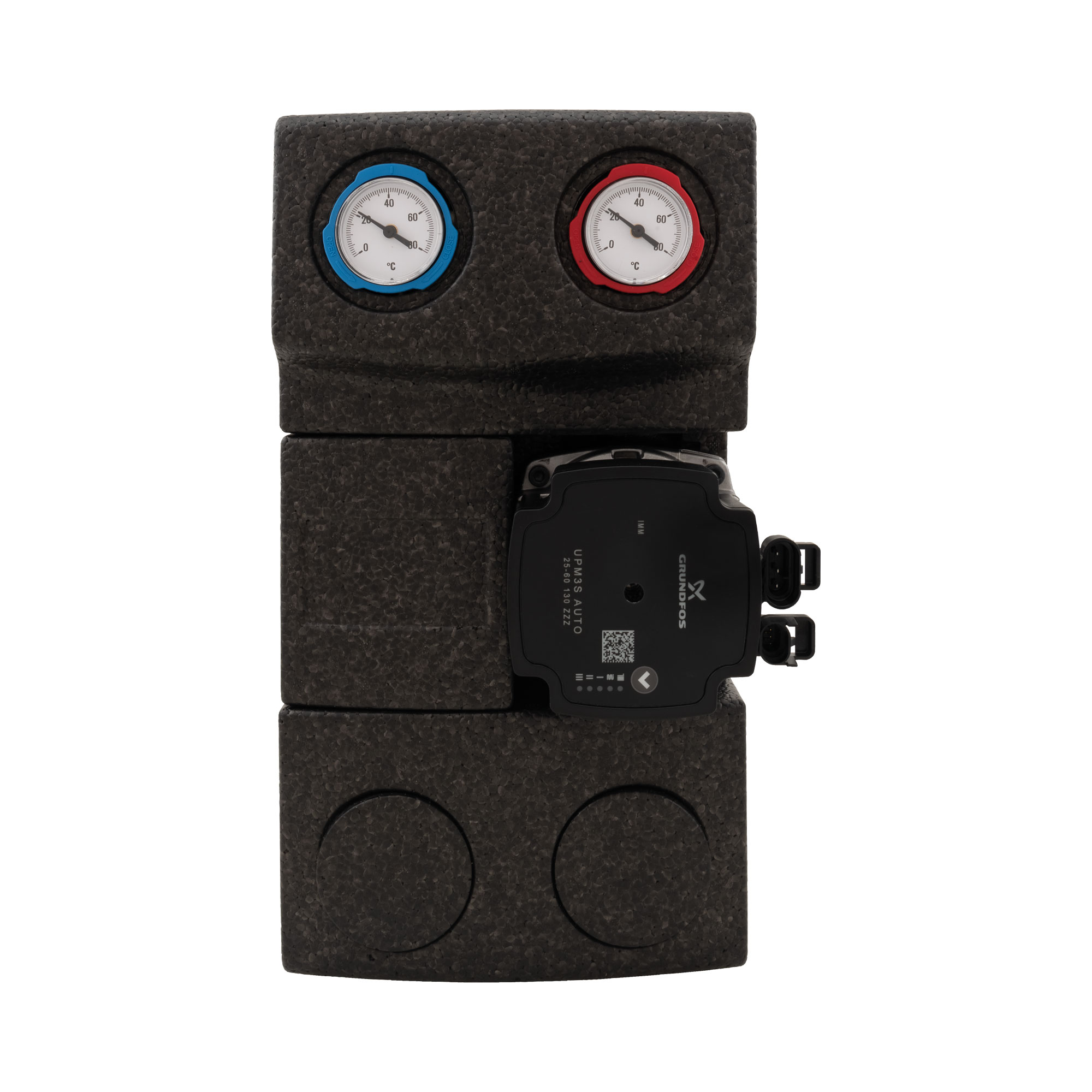

Direct distribution unit DN20

Supplied with insulation.
Kv = 23 m3/h.
Maximum operating pressure: 6 bar.
Maximum working temperature: 100°C.
System-side connection: 1″.
Boiler-side connection: 1″.
Centres distance: 90 mm.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Check valve on return circuit.
Reversible right – left.
Flow coefficient Kv referring to the ball valve only.
Art. 9510100090CP with Wita pump.
Art. 9510100090CPG with Grundfos pump.

SizePressureCodePacking
1"10bar/145psi9510100090CP1/1
1"10bar/145psi9510100090CPG1/1

Range DISTRIBUTION UNITS AND MANIFOLDS FOR CENTRAL HEATING PLANT
