098

Ideal ball valve, full flow for manifolds

Suitable for domestic water services, heating and air-conditioning plants, compressed air systems.

Male/female threads.
T handle in aluminium.
Body in nickel-plated brass.

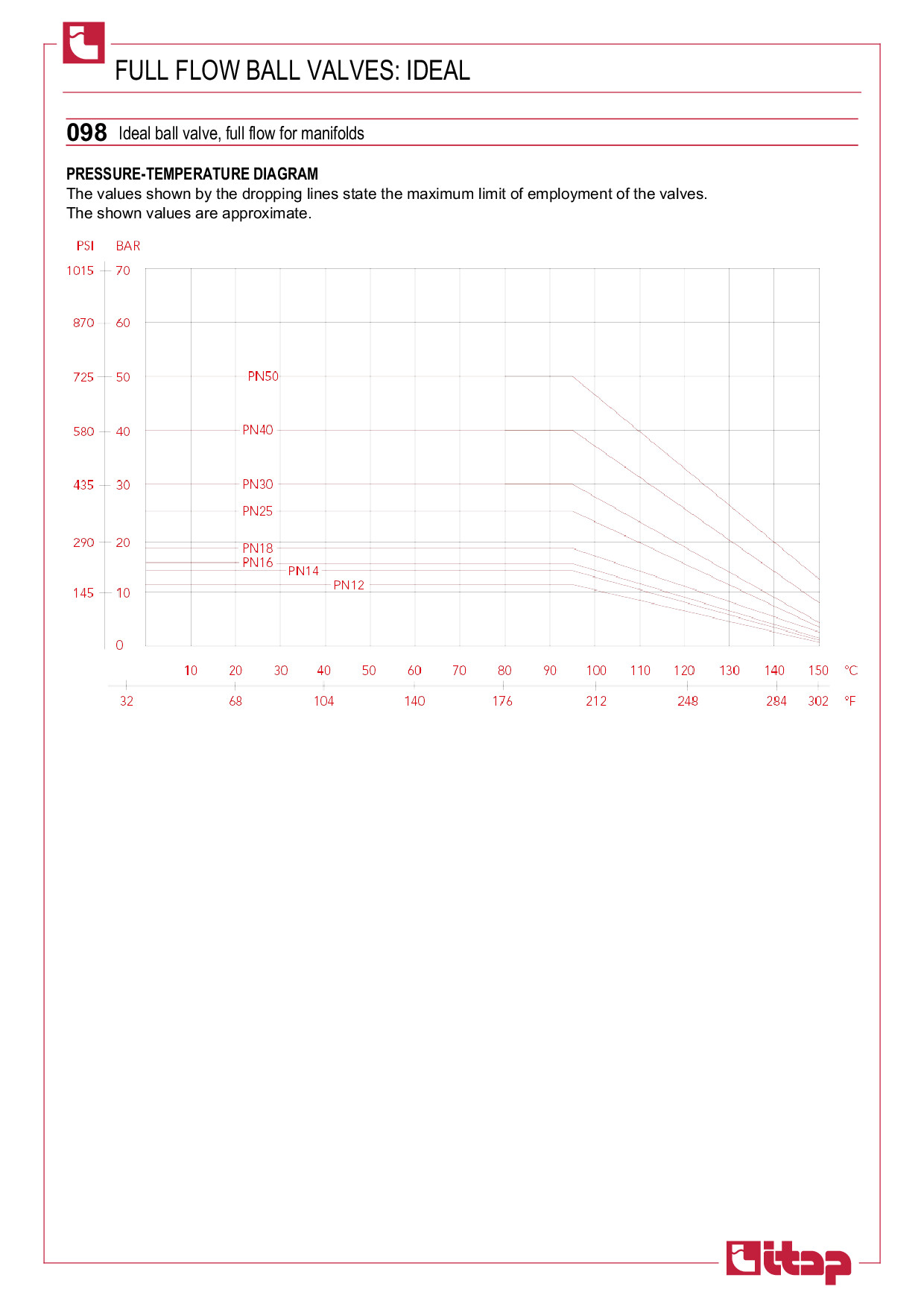

Minimum and maximum working temperatures: -20°C, 150°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
1”1/2 and 2” size with flat seat and lever handle in steel.

SizePressureCodePacking
1/2" (DN 15)50bar/725psi09800128/88
3/4" (DN 20)40bar/580psi09800346/60
1" (DN 25)40bar/580psi09801006/48
1"1/4 (DN 32)30bar/435psi09801144/32
1"1/2 (DN 40)30bar/435psi09801122/16
2" (DN 50)25bar/362.5psi09802002/14
