498ST
Mounting brackets in steel for metal boxes art. 498 and 498R

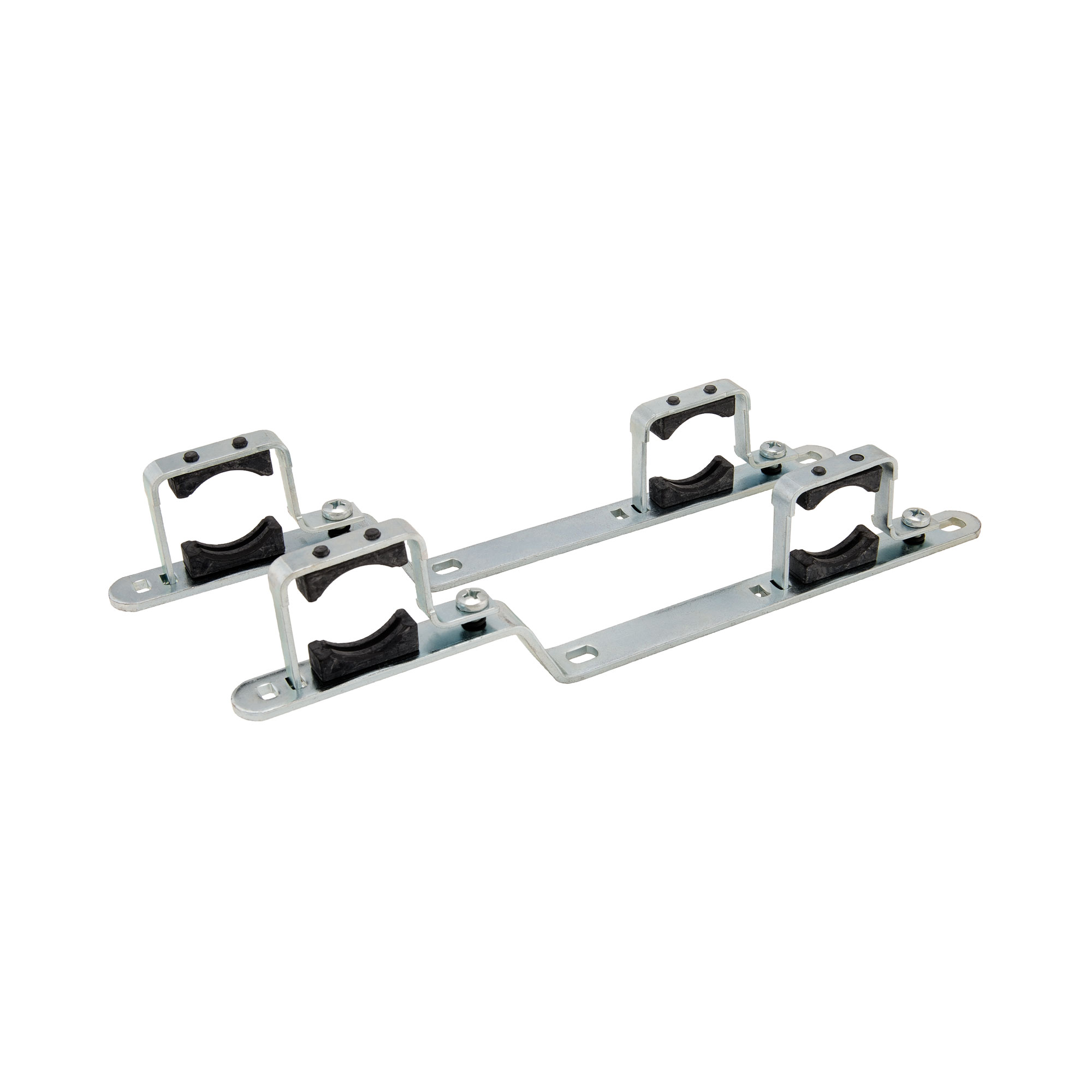

– 498STK: Standard version: centres distance mm. 200, offset: 12mm. Suitable for outlets pipe up to 20mm.

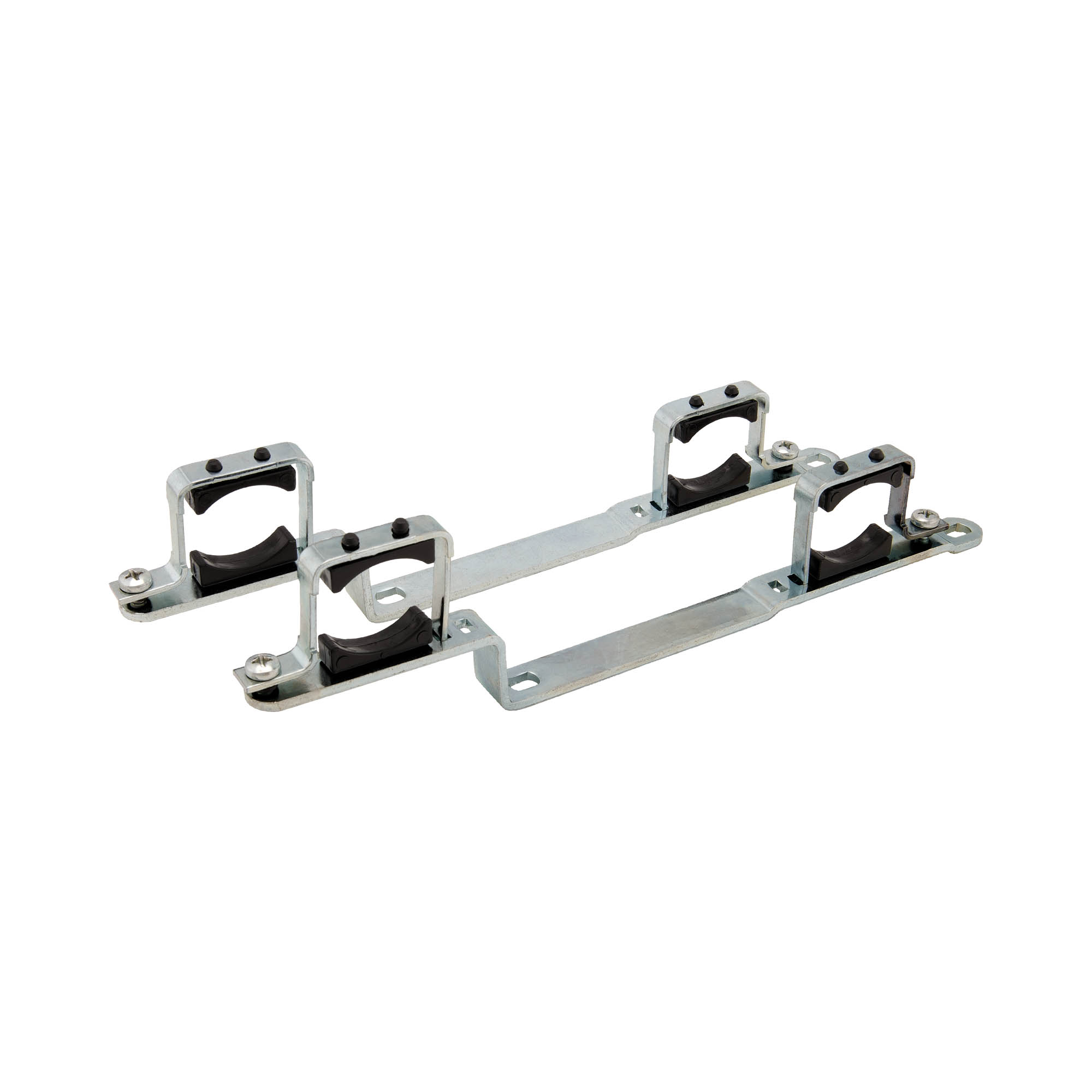

– 498STKM: Deeper version: centres distance mm. 200, offset: 30mm. Suitable for outlets pipe up to 25mm.

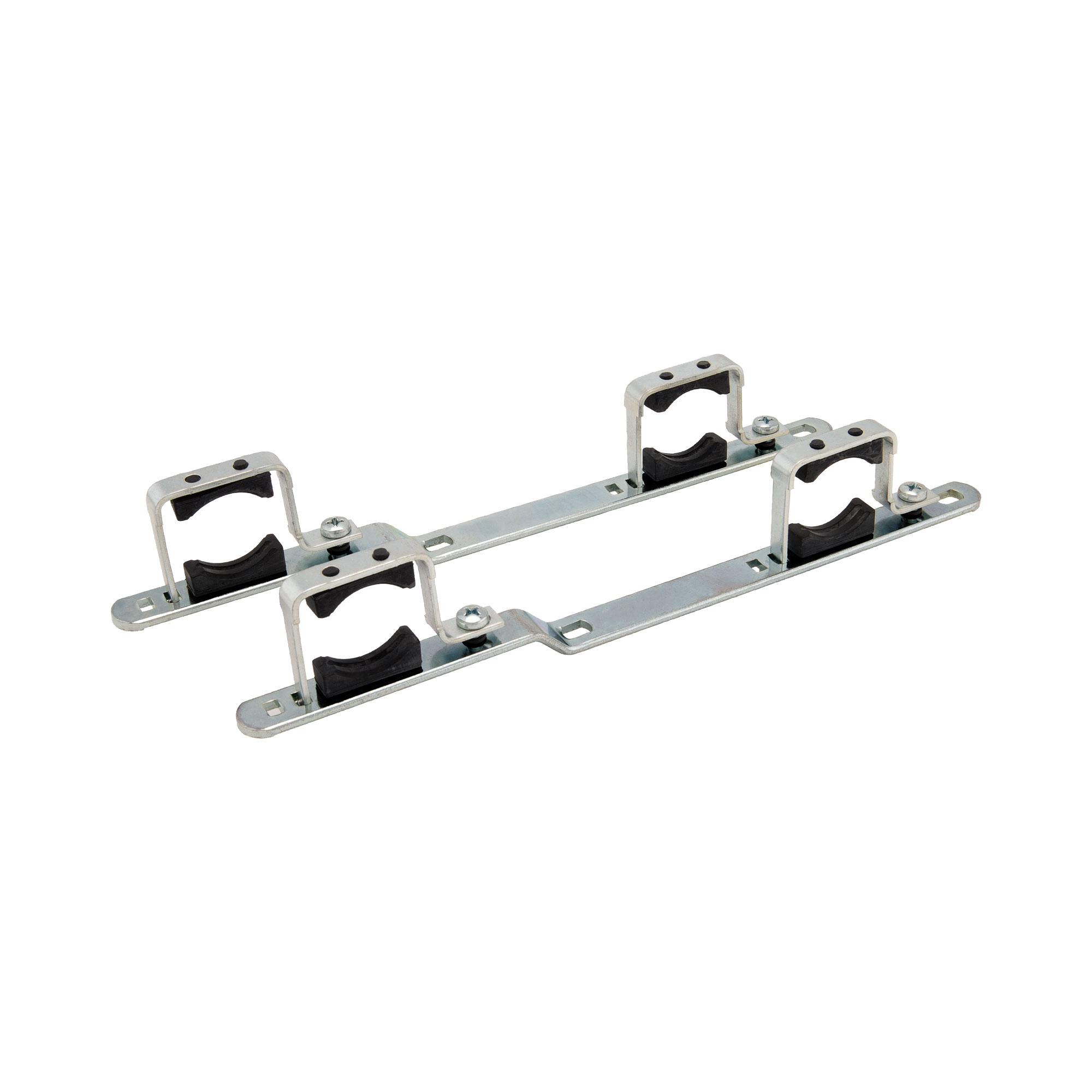

– 498STKMB: Deeper version: centres distance mm. 211, offset: 30mm. Suitable for outlets pipe up to 25mm.

SizeCodePacking
3/4"498ST034K1/20
1"498ST100K1/20
1"1/4498ST114K1/20
SizeCodePacking
1"498ST100KM1/20
SizeCodePacking
1"498ST100KMB1/20
Drawing 498ST
Download PDF
Materials 498ST
Download PDF
Technical featuresTechnical features
