918CB

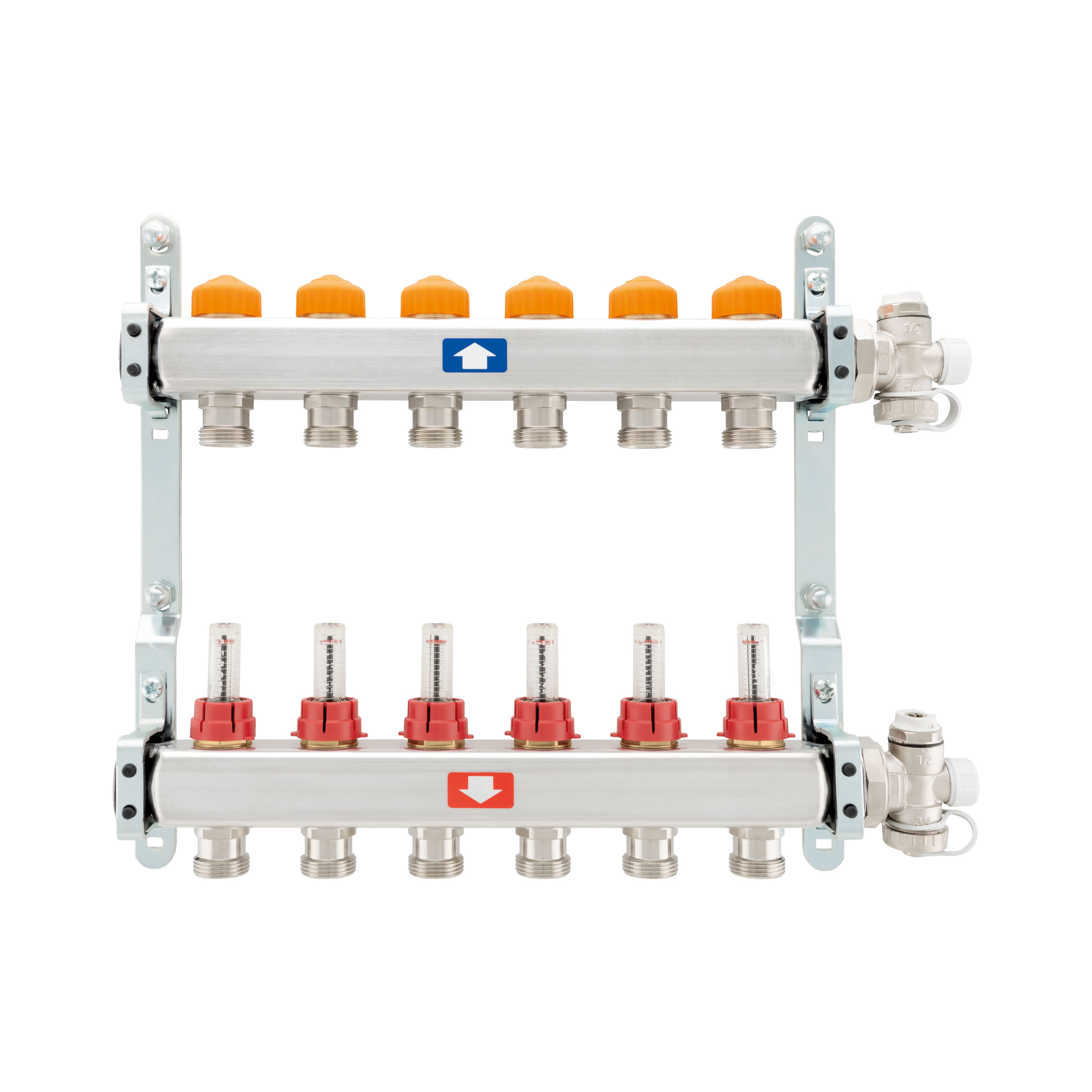

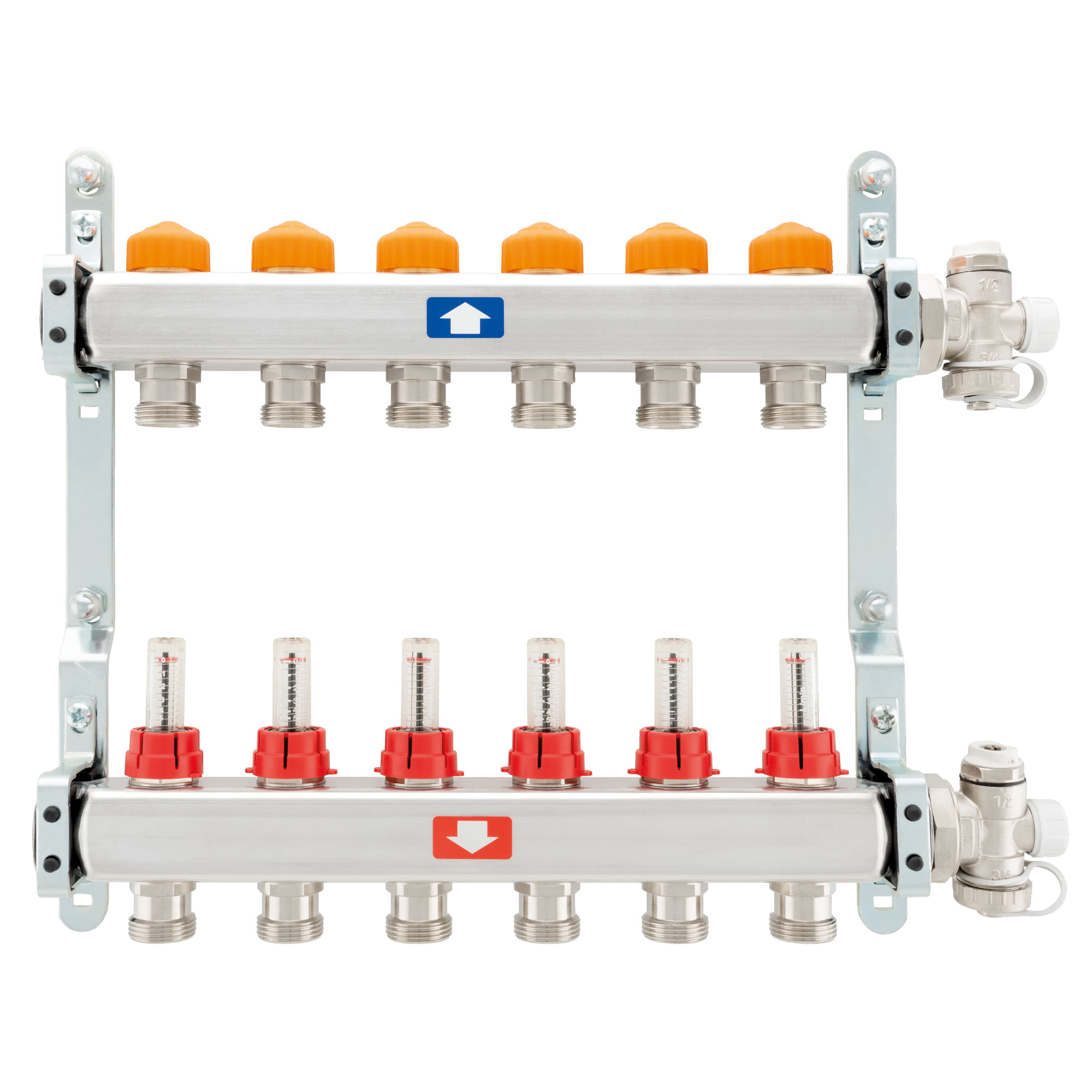

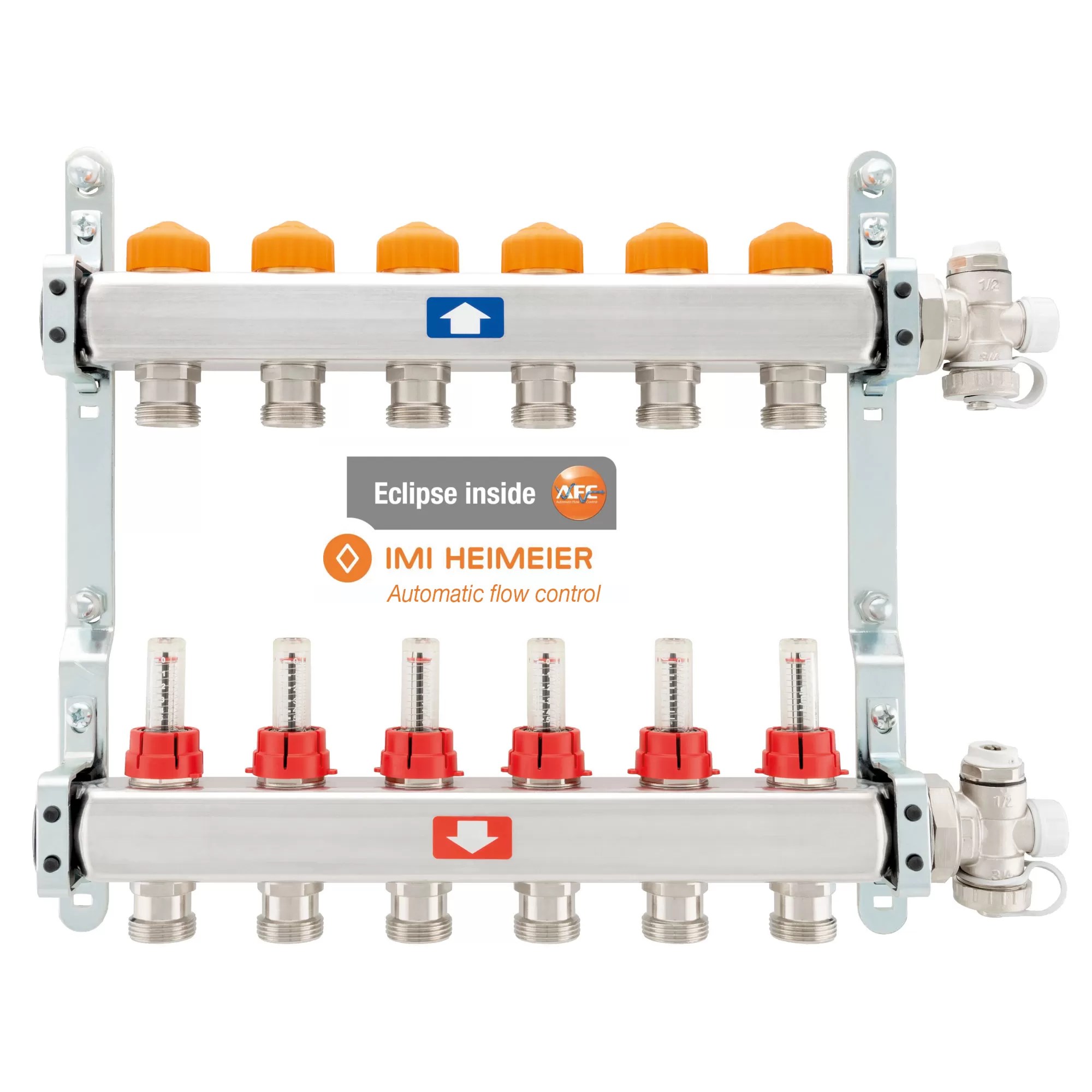

Pre-assembled manifold with flow meters, air vent valve and drain cock – Automatic flow control

Consisting of:
– 1 stainless steel AISI 304L return manifold with thermostatic insert Heimeier Eclipse®
– 1 flow manifold in stainless steel AISI 304L with flow meters
– 2 adjustable end pieces with drain valve and manual air vent valve
– 2 complete metal brackets

Available sizes: 1”.
Maximum operating pressure: 6 bar.
Maximum working temperature: 70°C
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Outlets: from 2 to 13, 3/4” Eurokonus.
Outlet centre distance: mm.50.
ATTENTION: manifolds will be supplied mounted on the brackets.

With standard mounting bracket 498STK: centres distance mm. 200, offset: 12mm. Suitable for outlets pipe up to 20mm.

With deeper mounting bracket 498STKM: centres distance mm. 200, offset: 30mm. Suitable for outlets pipe up to 25mm.

With deeper mounting bracket 498STKMB: centres distance mm. 211, offset: 30mm. Suitable for outlets pipe up to 25mm.
