115

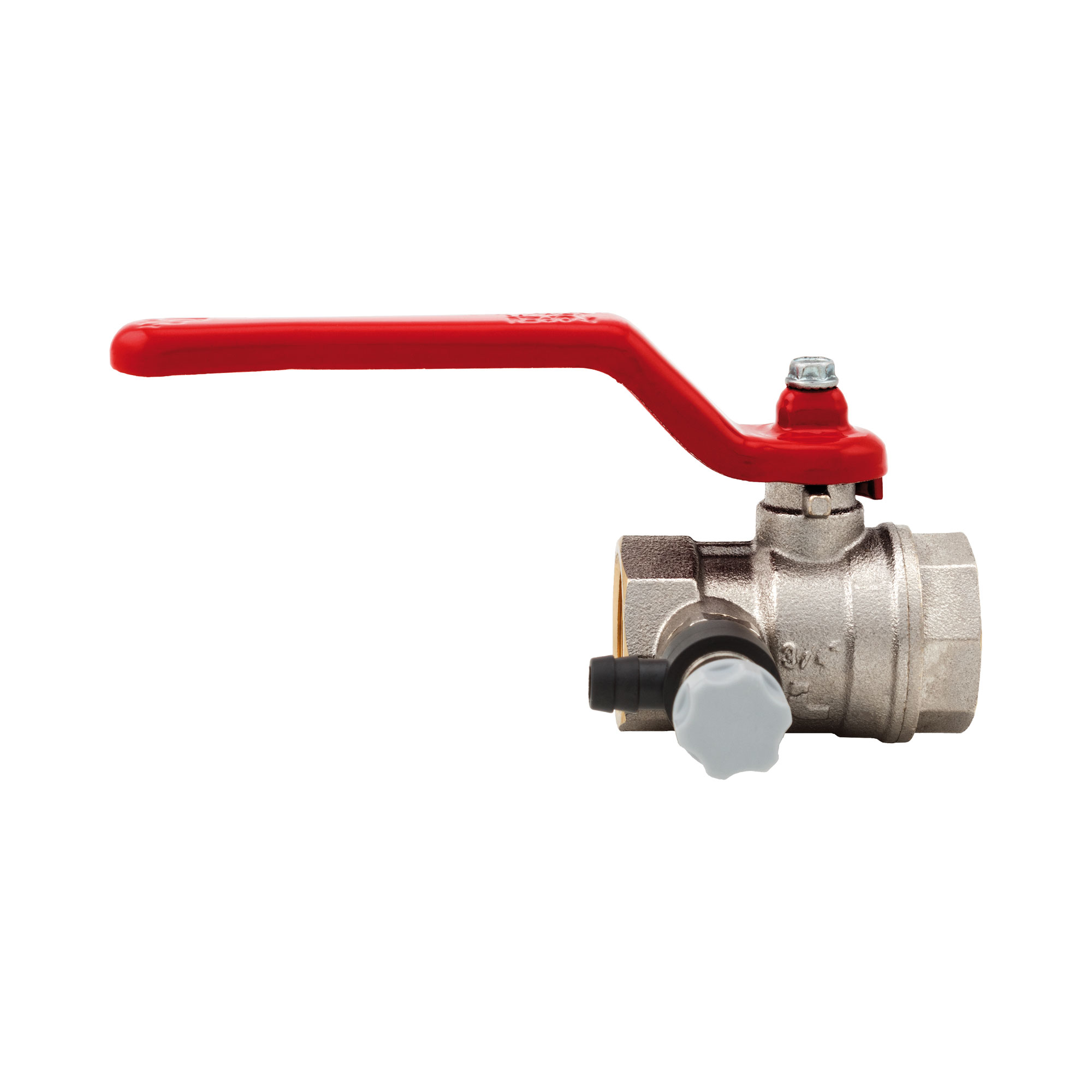

Standard flow ball valve with revolving drain cock

Suitable for domestic water services, heating, air-conditioning plants and compressed air.

Female/female threads.
Lever handle in steel.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -20°C, 110°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
1/2" (DN 15)25bar/362.5psi115001214/112
3/4" (DN 20)25bar/362.5psi11500348/64
1" (DN 25)25bar/362.5psi11501008/48
1"1/4 (DN 32)20bar/290psi11501144/32
1"1/2 (DN 40)20bar/290psi11501124/28
2" (DN 50)20bar/290psi11502002/18
