156

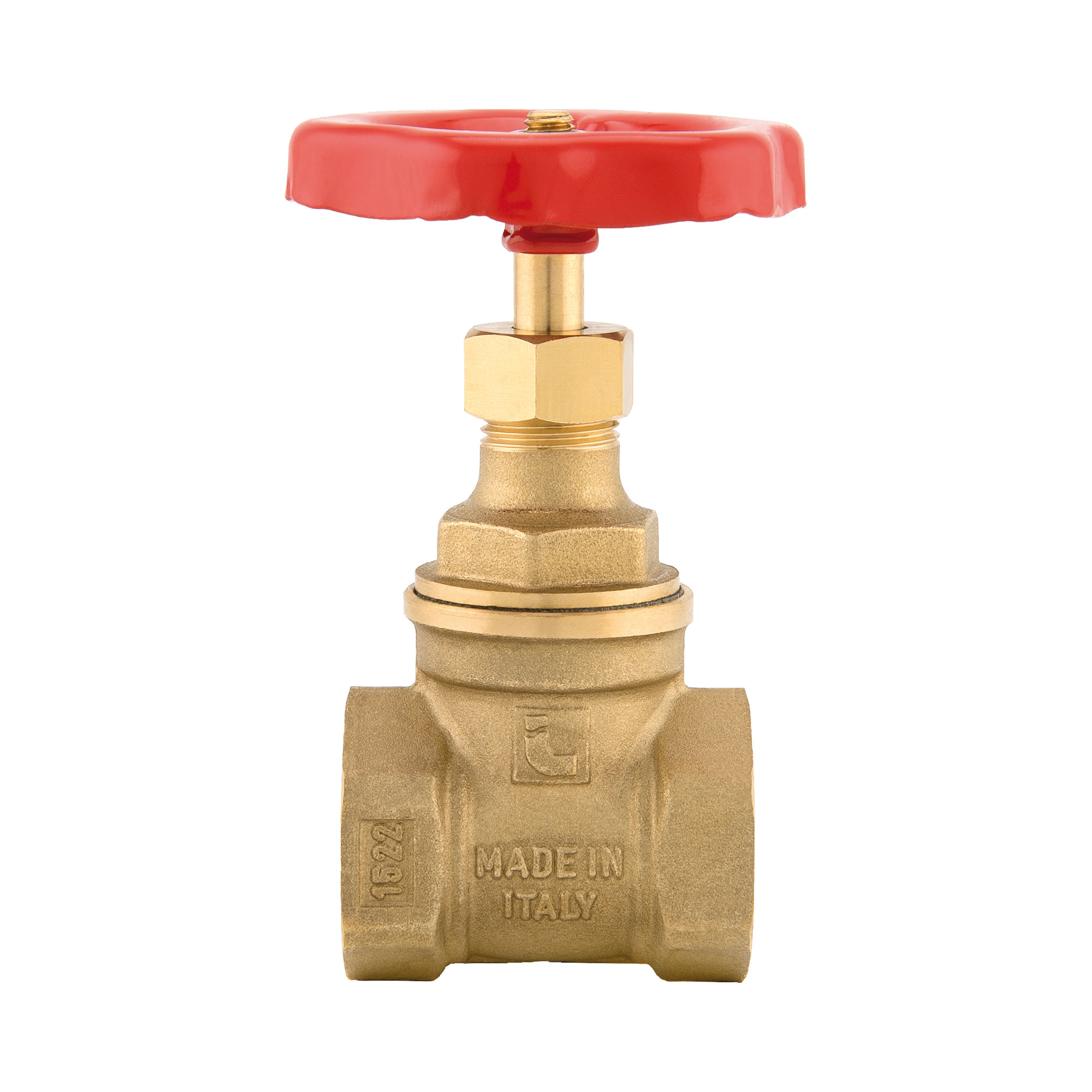

Brass gate valve PN16

Suitable for domestic water services, heating, air-conditioning plants and compressed air.

Female/female threads.

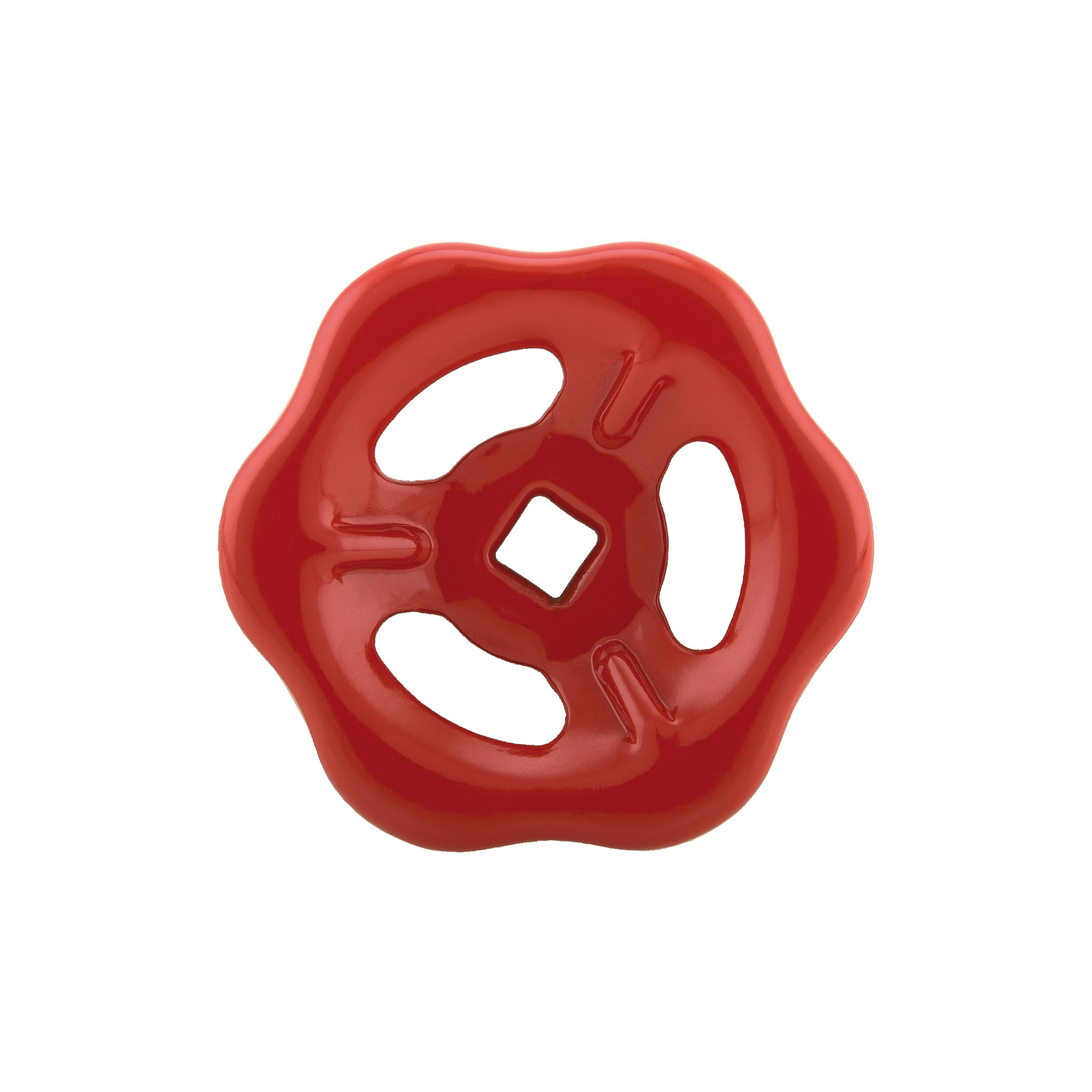

Handwheel in aluminium.
Body in brass.
Minimum and maximum working temperatures: 0°C, 150°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Available also with NPT thread in the sizes 2”1/2, 3” and 4”.

SizePressureCodePacking
1/2" (DN 15)16bar/232psi156001212/72
3/4" (DN 20)16bar/232psi156003410/60
1" (DN 25)16bar/232psi15601005/35
1"1/4 (DN 32)16bar/232psi15601144/24
1"1/2 (DN 40)16bar/232psi15601122/14
2" (DN 50)16bar/232psi15602002/14
2"1/2 (DN 65)16bar/232psi15602121/8
3" (DN 80)16bar/232psi15603001/8
4" (DN 100)16bar/232psi15604001/2

Range BALL VALVES AND GATE VALVES
