Locking device for lockable flat lever handle - 084LK
Locking device for lockable flat lever handle - 084LK

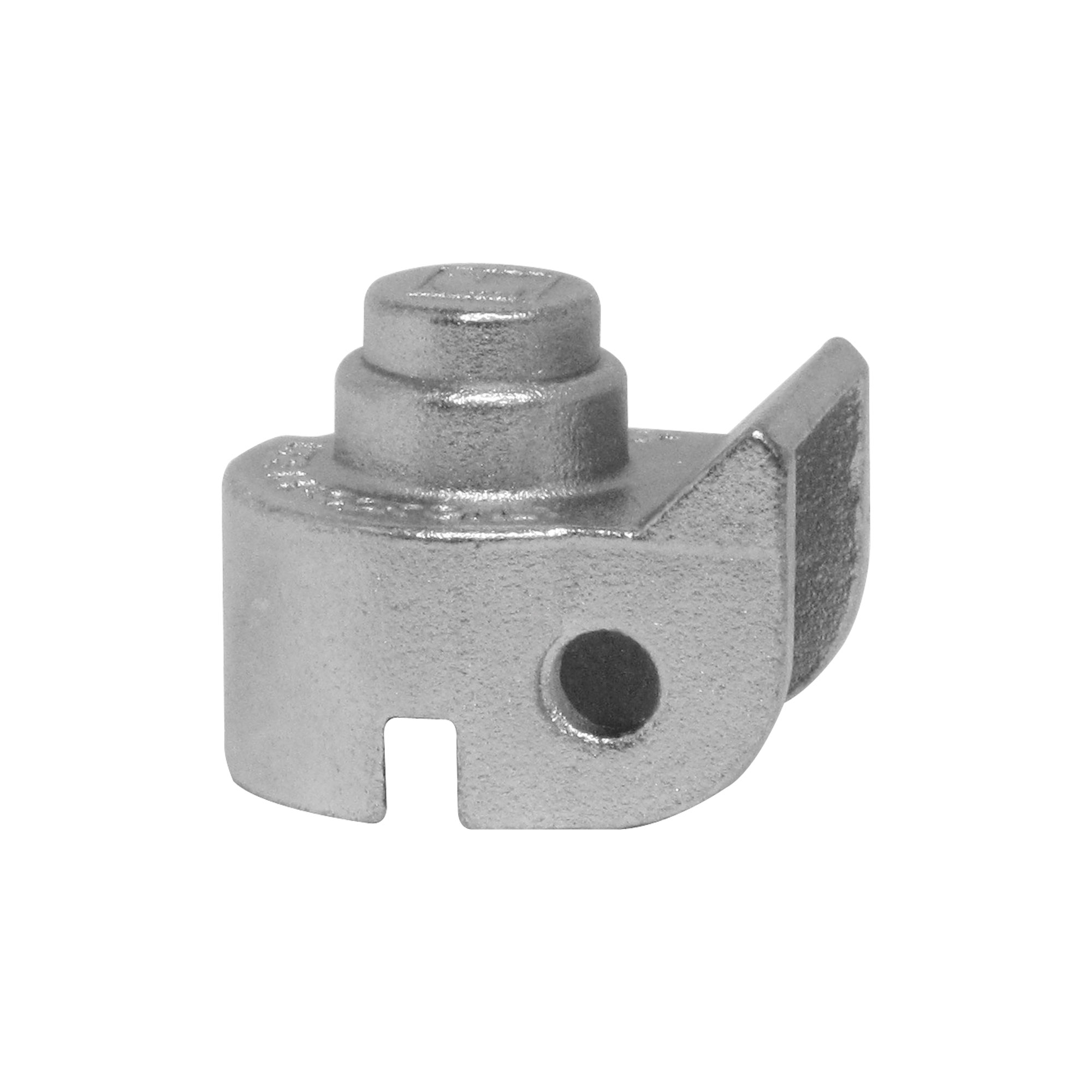

084LK
Locking device for lockable flat lever handle

Zinc-plated K5 Zamak.
The device is supplied without padlock.
Suitable padlock with long shackle: 6mm / 1/4.

Size of the handle corresponding to each valve.

Art.1/4”3/8”1/2”3/4”1”1″1/4
111/112111233
211111233
090/09111133–
29011133–
290P/291P11133–
116/11711133–
216/21711133–
131/132–1122–
133–1122–
167––11––
174––11––
178––11––
066/06711233–
266/26711233–
076/07711233–
376/37711233–
115––133–
098––133–
298––133–
SizeCodePacking
1084LK0110/400
2084LK0210/400
3084LK0310/400
Drawing 084LK
Download PDF
Materials 084LK
Download PDF
Installation 084LK
Download PDF
Declaration of Conformity 084LK
Download PDF
Technical featuresTechnical features
