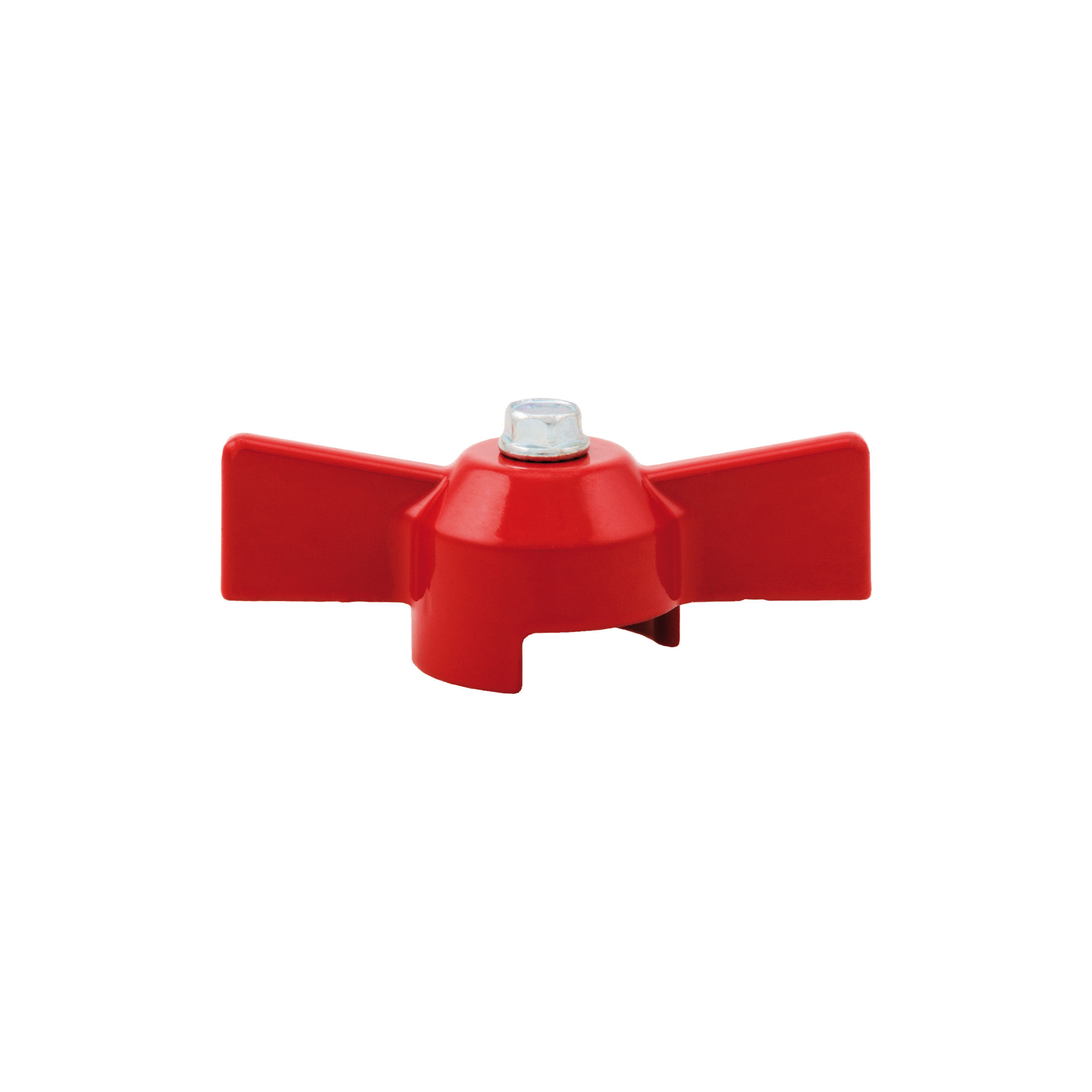

T handle for ball valves and bibcocks - 087

T handle for ball valves and bibcocks - 087

087
T handle for ball valves and bibcocks

Description

Size of the handle corresponding to each valve.

Art.	1/4”	3/8”	1/2”	3/4”	1”	1”1/4	1″1/2
113/114	1	1	1	2	2	–	–
092/093	1	1	1	3	3	4	–
292P/293P	1	1	1	3	3	4	–
118/119	1	1	1	2	3	–	–
082/083	–	–	2	3	3	–	–
131	–	–	1	–	–	–	–
134	–	1	1	2	3	–	–
168	–	–	1	1	–	–	–
176	–	–	1	1	–	–	–
180	–	–	1	1	–	–	–
078/079	1	1	2	3	3	–	–
378/379	1	1	2	3	3	–	–
098	–	–	1	3	3	4	–
298	–	–	1	3	3	–	–
115	–	–	1	2	3	4	4

Sizes

Size	Code	Packing
1	0870001	20/500
2	0870002	20/500
3	0870003	20/500
4	0870004	10/250

Quality

Drawing

Materials

Declaration of Conformity

Technical features
