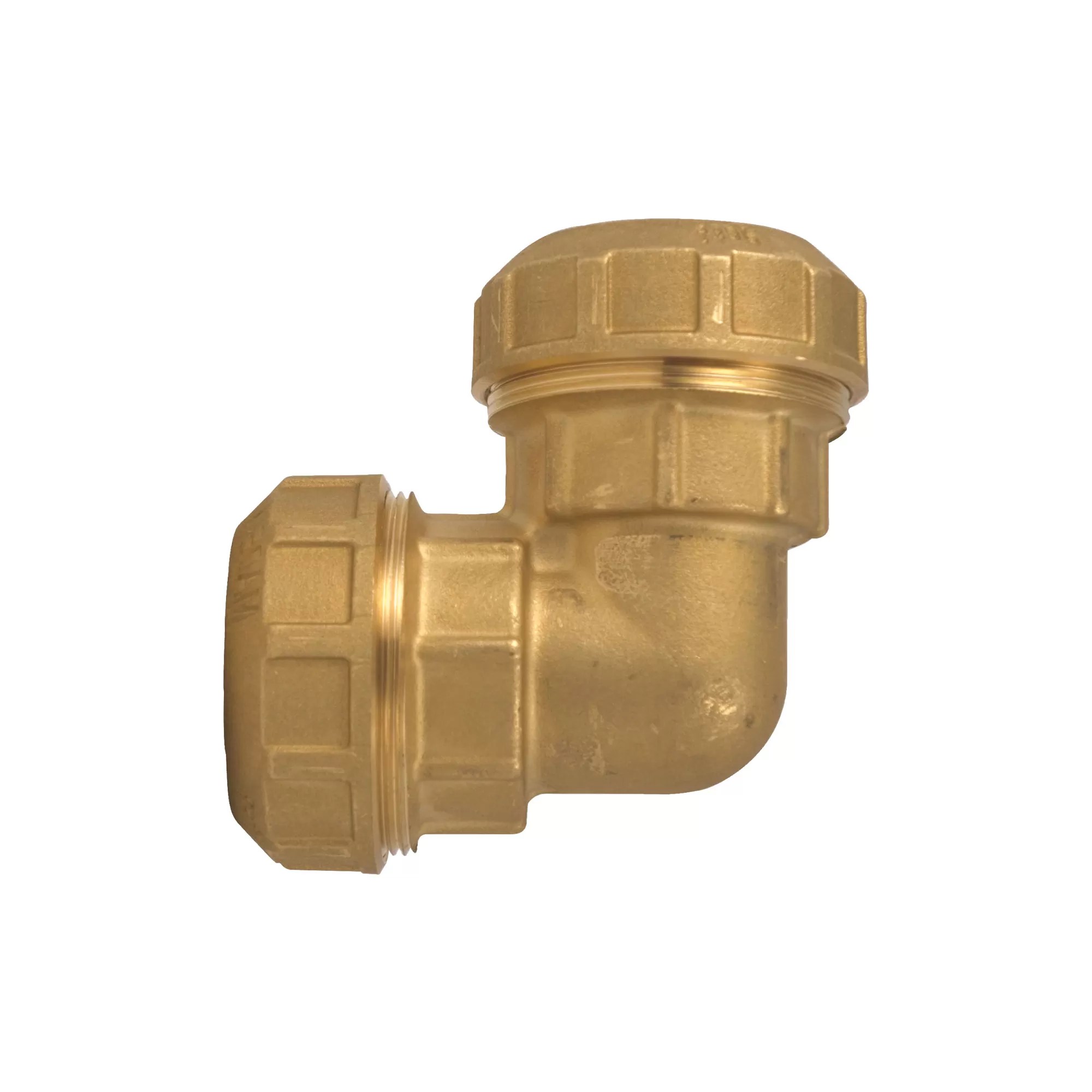

Elbow coupling - 750
Elbow coupling - 750

750
Elbow coupling

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.

SizeCodePacking
20750001202012/108
25750003402510/90
3275001000326/48
4075001140404/32
Drawing 750
Download PDF
Materials 750
Download PDF
Installation 750
Download PDF
Declaration of Conformity 750
Download PDF
Technical featuresTechnical features

Range VX-N FITTINGS FOR POLYETHYLENE PIPES
