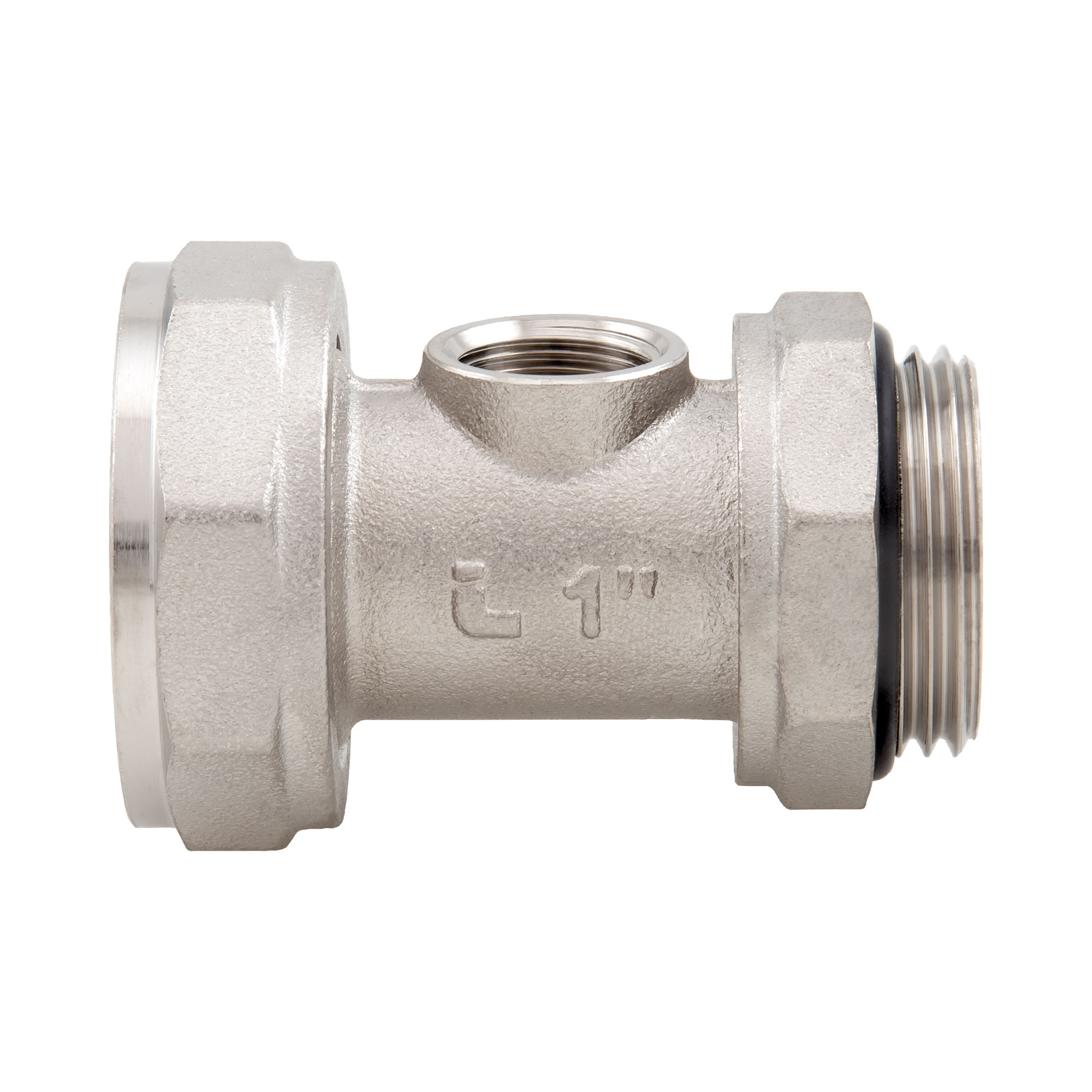

492B

Thermometer union

Available sizes: 1”M x 1”1/4F, 1”1/4M x 1”1/2F.
Size of the thermometer thread: 3/8”.
Body in nickel-plated brass. O-ring in NBR.
Maximum working temperature: 110°C.
Threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Suitable for ball valve art. 098SDC and 298SDC.

SizePressureCodePacking
1"10bar/145psi4920100B8/128
1"1/410bar/145psi4920114B4/64

Range ACCESSORIES FOR MANIFOLDS
