Female end cap with washer - 496
Female end cap with washer - 496

496

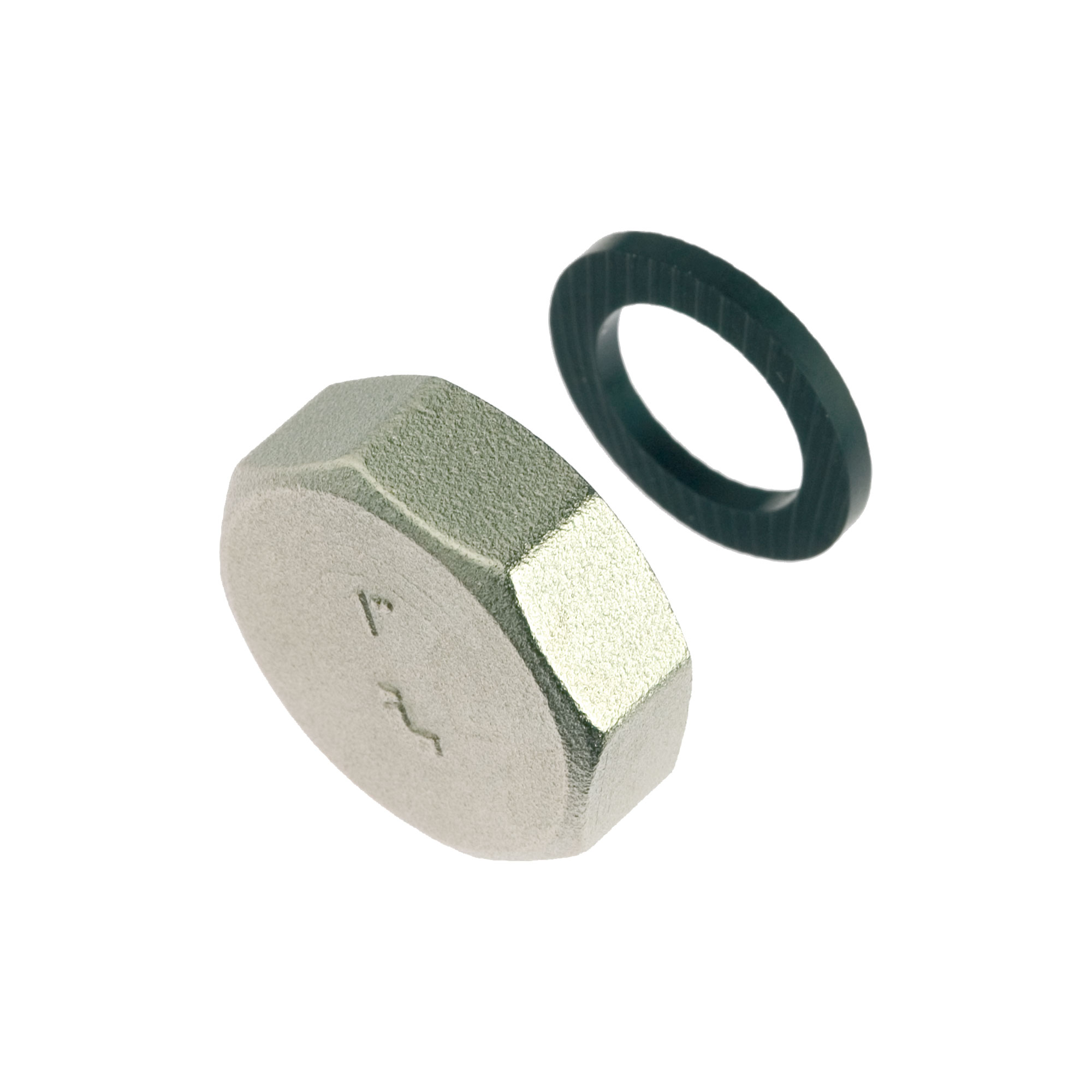

Female end cap with washer

Body in nickel-plated brass.
Washer in NBR.
Maximum working temperature: 110°C.
Threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
1/2"10bar/145psi496001240/1040
3/4"10bar/145psi496003426/624
1"10bar/145psi496010020/300
Drawing 496
Download PDF
Materials 496
Download PDF
Declaration of Conformity 496
Download PDF
