294S

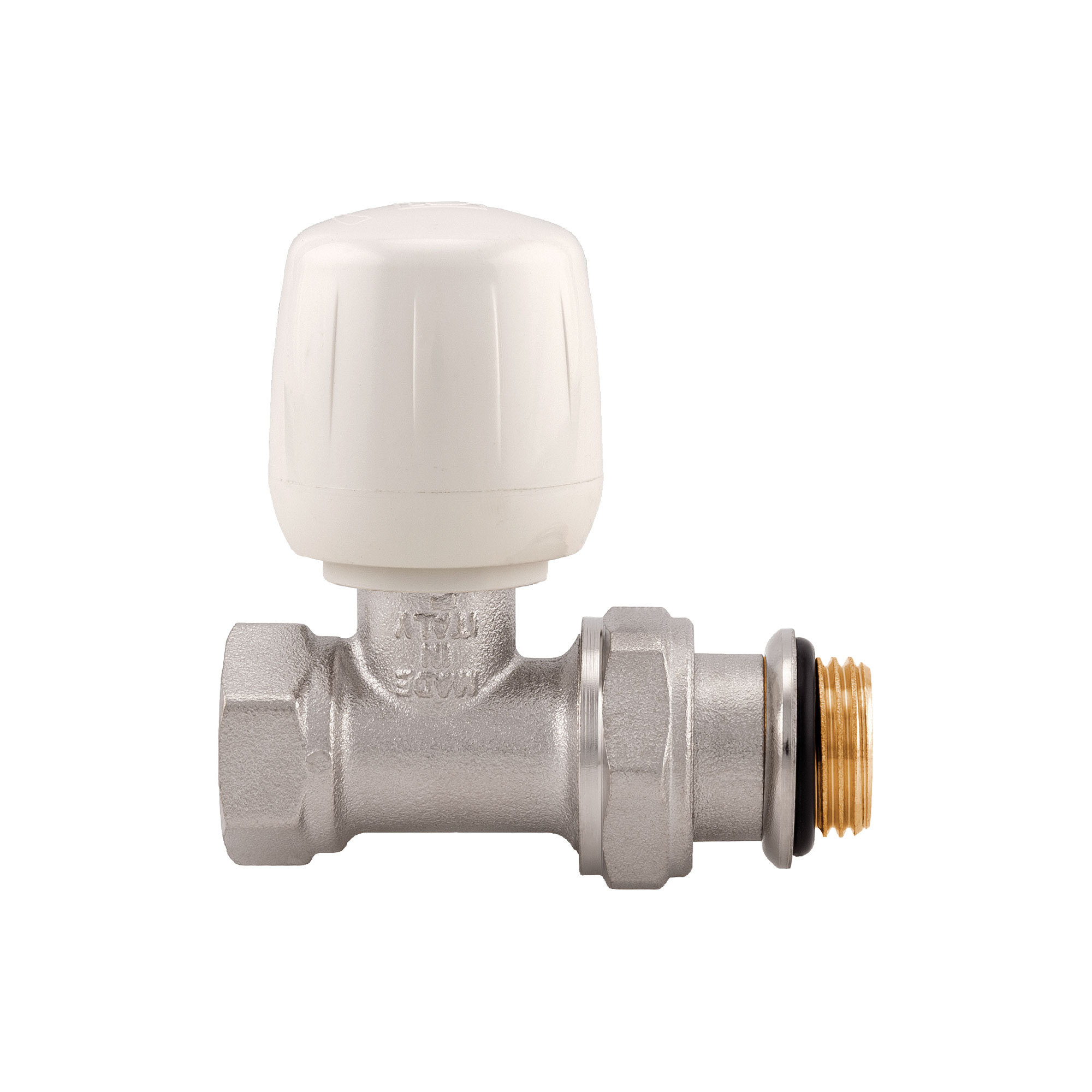

Straight manual valve

Body in nickel-plated brass.
Maximum working temperature: 110°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

To be used with iron piping or, together with an Itap-Fit® connector (art. 618), with copper, crosslinked polyethylene (PEX) or polybutylene.
In the case of use with PEX or polybuthylene it is also requested the use of the liner art. 655.

SizePressureCodePacking
1/2" (DN 15)10bar/145psi2940012S12/96
3/4" (DN 20)10bar/145psi2940034S10/80

Range MANUAL VALVES AND LOCKSHIELDS
