Angle manual valve - 394
Angle manual valve - 394

394

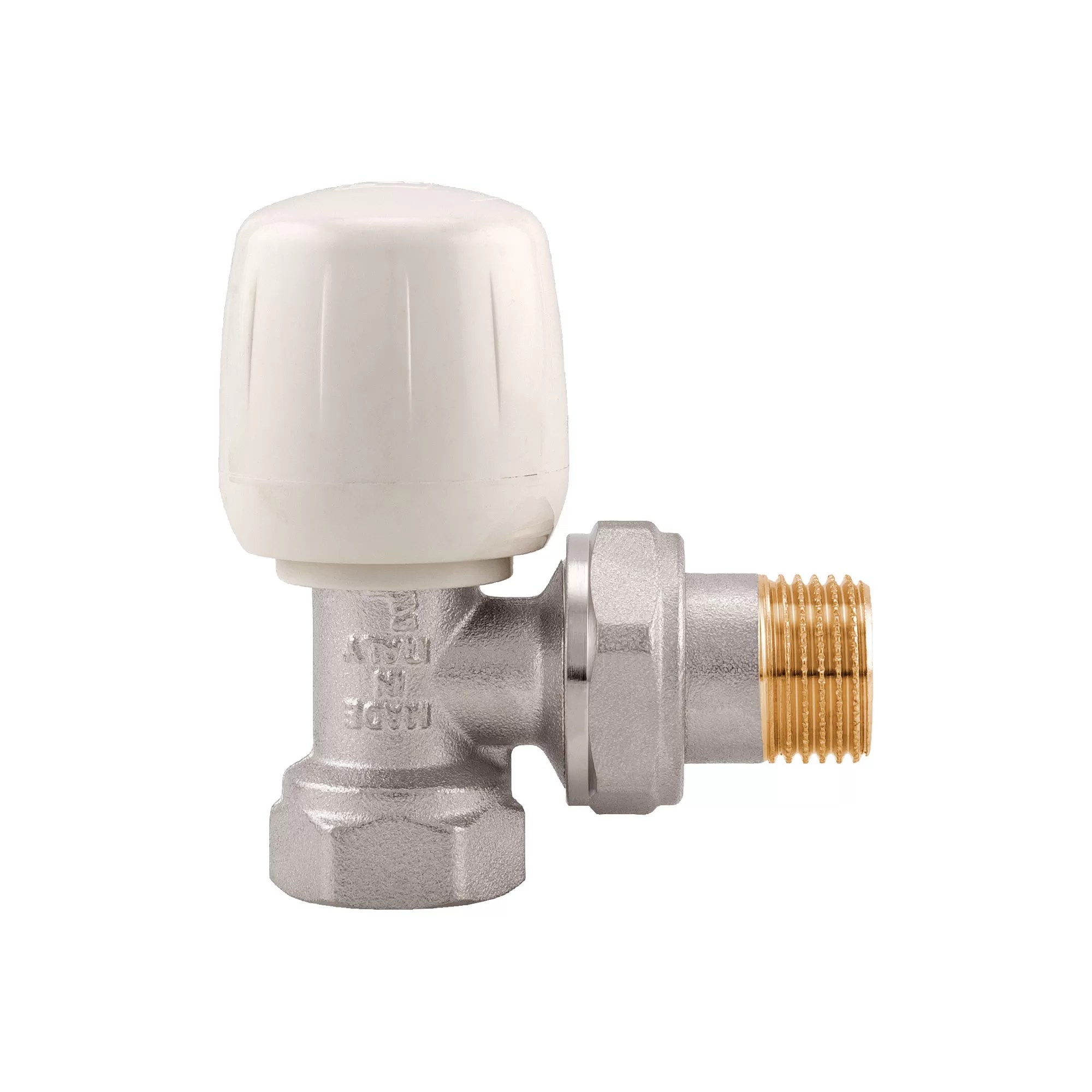

Angle manual valve

Body in nickel-plated brass.
Maximum working temperature: 110°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
3/8" (DN 10)10bar/145psi394003812/96
1/2" (DN 15)10bar/145psi394001212/96
3/4" (DN 20)10bar/145psi39400348/64
Drawing 394
Download PDF
Materials 394
Download PDF
Pressure drop diagram 394
Download PDF
Declaration of Conformity 394
Download PDF
