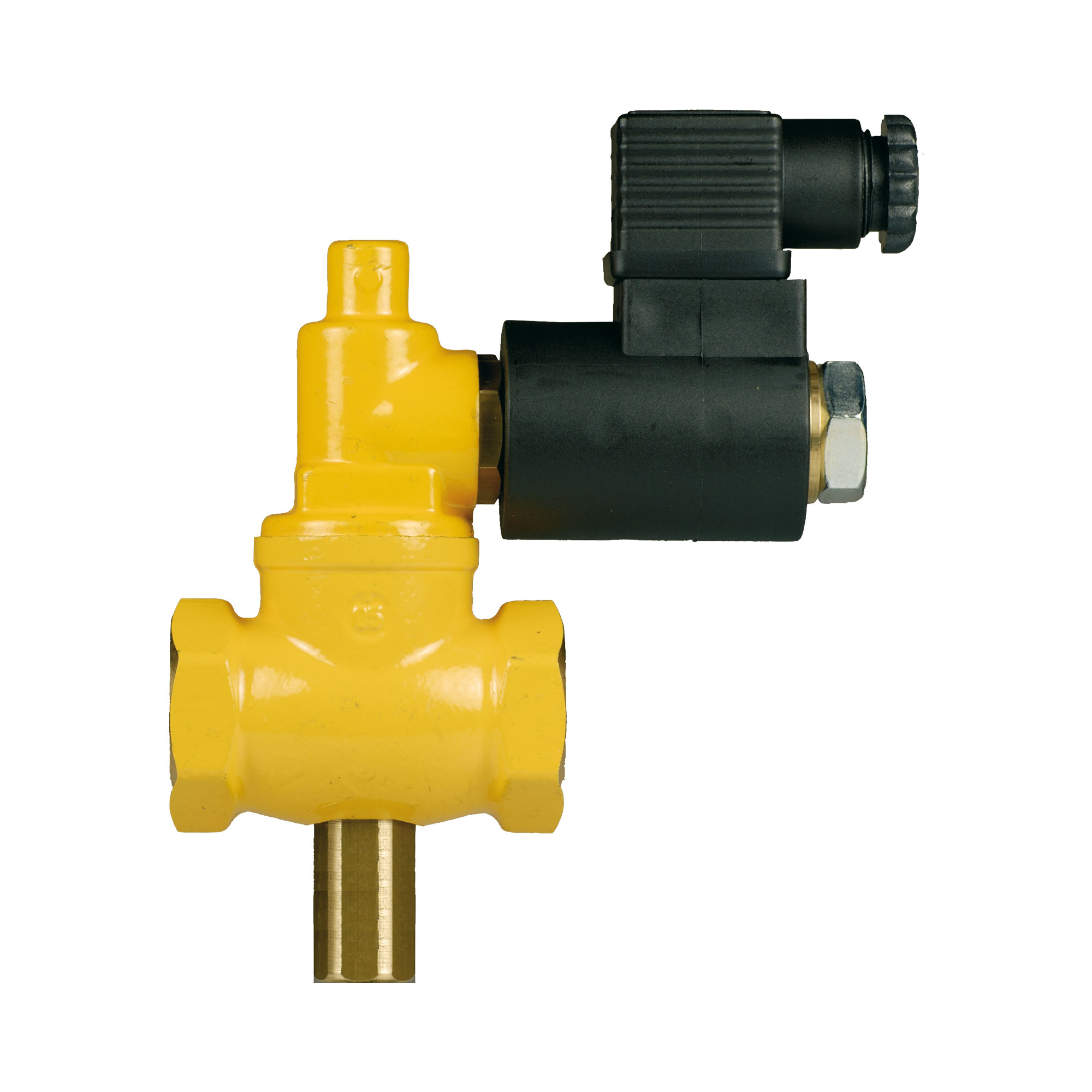

993G
Solenoid safety valve, normally open

Body in brass.
Class of protection: IP65.
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Power supply voltage: 230V.
Power input: 17 VA and 19 W.
Working temperature: -15°C, 70°C.
Closing time: <1sec. Maximum working pressure: 6bar. Manual reset in compliance with CEI UNI EN 50194 regulation. Compliant with CEI UNI EN 50194 standard. Approved according to Directive 2014/68/EU (CE 0496 and CE 0497).

LPG

SizePressureCodePacking
1/2" (DN 15)6bar/87psi9930012G1/17
3/4" (DN 20)6bar/87psi9930034G1/0
1" (DN 25)6bar/87psi9930100G1/0
1"1/4 (DN 32)6bar/87psi9930114G1/0
1"1/2 (DN 40)6bar/87psi9930112G1/0
2" (DN 50)6bar/87psi9930200G1/0

Range GAS LEAK DETECTORS AND SOLENOID SAFETY VALVES
