Male elbow - 040
Male elbow - 040

040

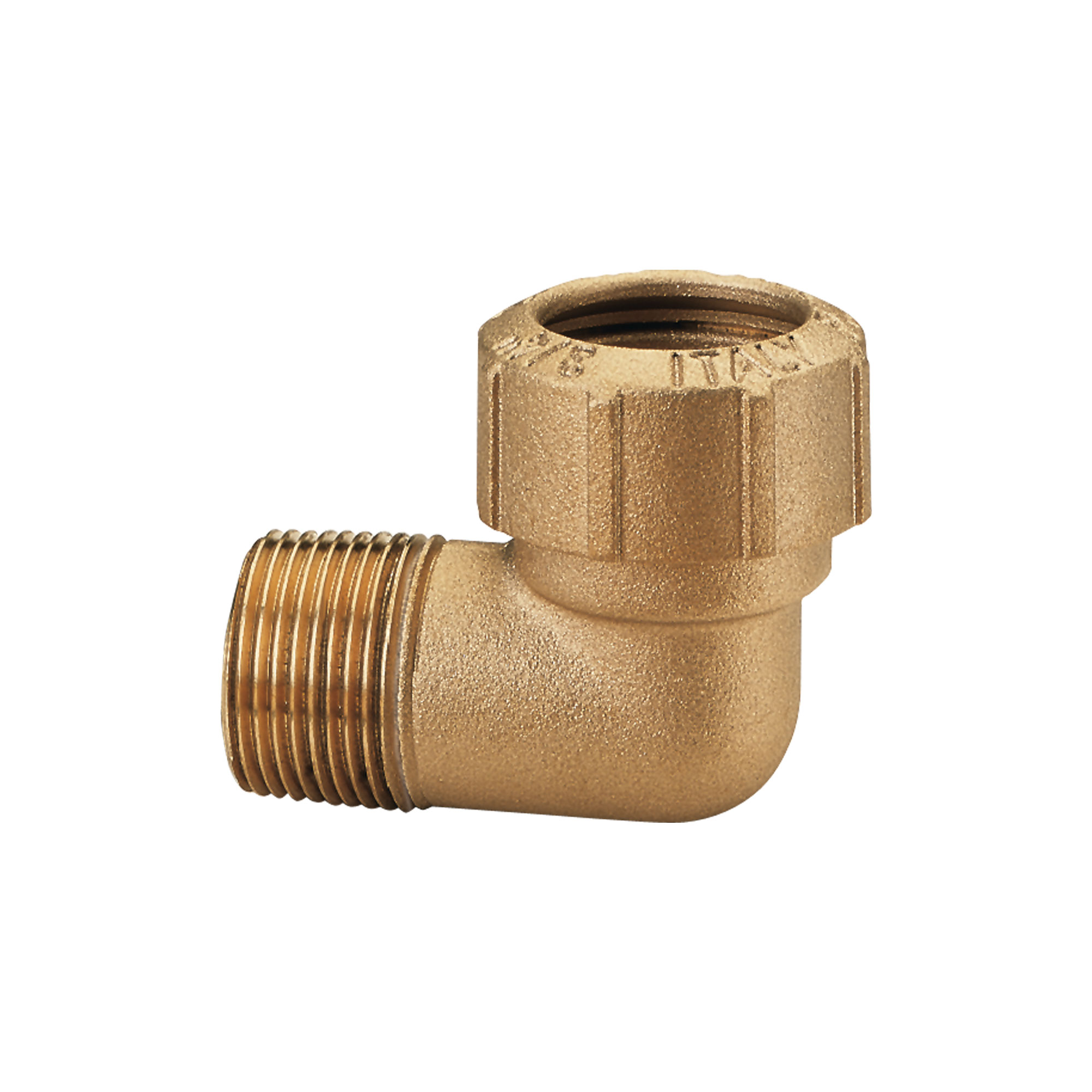

Male elbow

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Male threads ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizeCodePacking
1/2"x20040001202015/180
3/4"x25040003402512/108
1"x3204001000328/64
1"1/4x4004001140404/32
1"1/2x5004001120504/24
2"x6304002000632/12
Drawing 040
Download PDF
Materials 040
Download PDF
Installation 040
Download PDF
Declaration of Conformity 040
Download PDF
