981

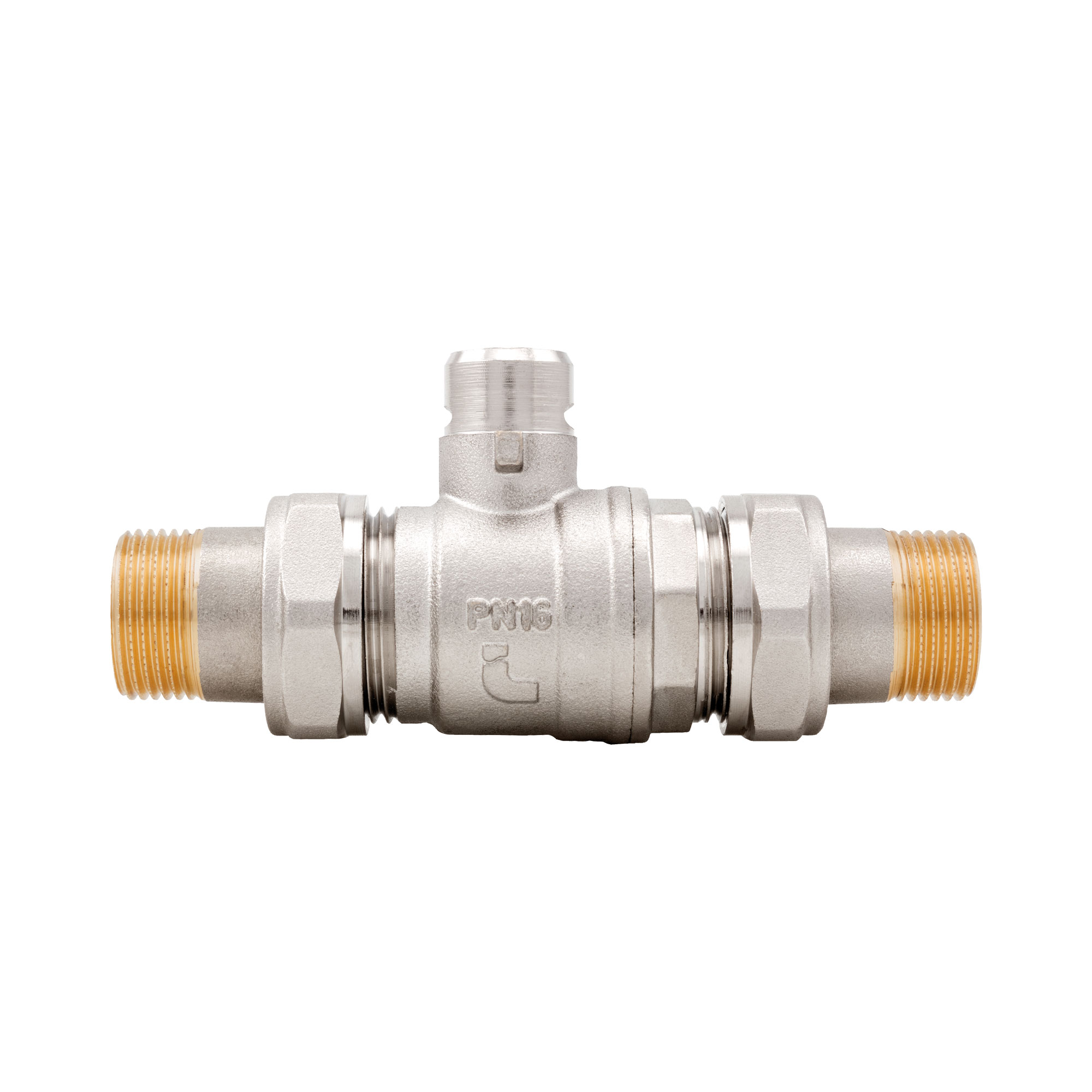

2-way zone ball valve with double union connection

Body in nickel-plated brass.
Full flow ball.
Maximum working pressure: 16 bar.
Maximum differential pressure: 10bar.
Minimum and maximum working temperatures: -10°C (with antifreeze solution), 100°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Suitable for the electric actuators art. 990 and 991.
Art.980 and 981 suitable for the electric actuators 989, 990 and 991.

SizePressureCodePacking
3/4" (DN 20)16bar/232psi98100341/30
1" (DN 25)16bar/232psi98101001/30
1"1/4 (DN 32)16bar/232psi98101141/16

Range ELECTRIC ACTUATORS AND ZONE BALL VALVES
