991

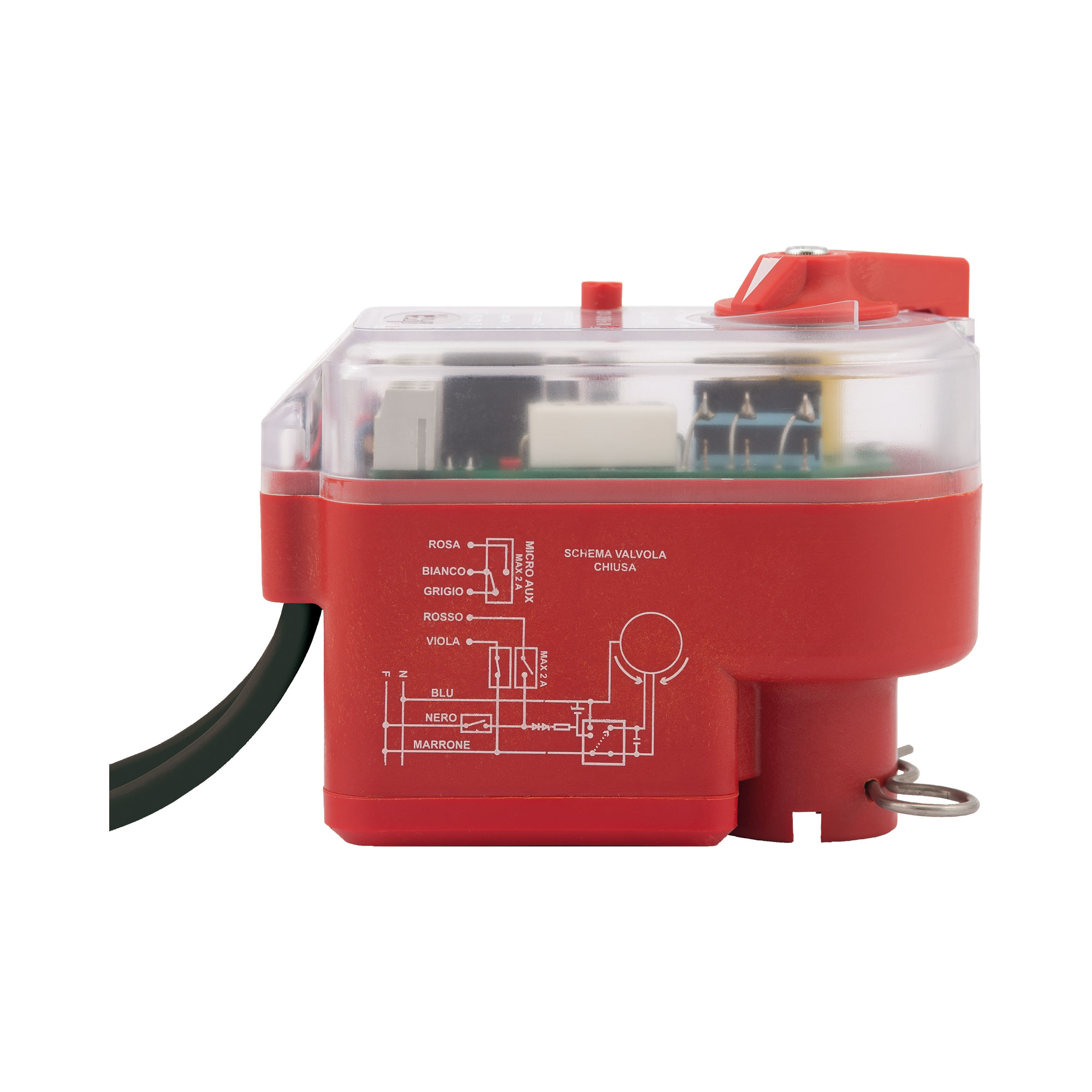

Electric actuator for zone ball valves with manual unlocking device

Bidirectional electric actuators.
Supplied with an auxiliary microswitch.
Case in nylon.
Power supply voltage: 230V or 24V.
Power consumption: 4VA.
Minimum and maximum working ambient temperature: -5°C, 70°C.
Class of protection: IP54.
Capacity of the auxiliary connection: 2A.
Operating time: 25 or 50 seconds.
Angle of rotation: 90°.
Starting torque:
– 50” model: 10Nm;
– 25” model: 5Nm.

SizeCodePacking
230V x 25sec991230251/18
230V x 50sec991230501/18
24V x 50sec991024501/18

Range ELECTRIC ACTUATORS AND ZONE BALL VALVES
