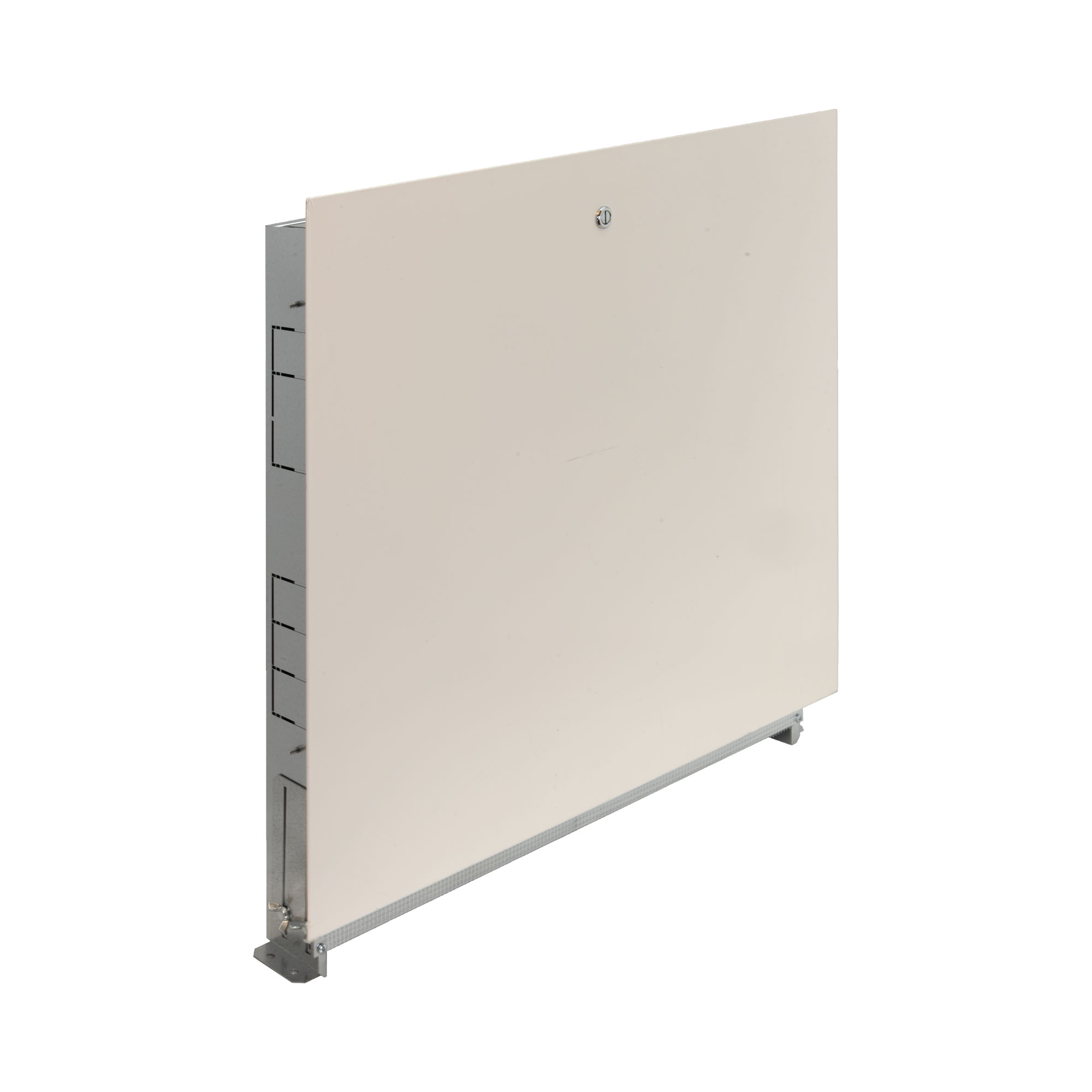

Metal box for manifolds

Enclosure, telescopic door frame and door in zincplated steel.
Painted door.
Adjustable depth: from mm. 80 to mm. 130.
Minimum depth for Itap manifolds installation: mm. 90.
Adjustable height: from mm. 600 to mm. 700.

SizeCodePacking
600x500x(80-130)4986005001/1
700x500x(80-130)4987005001/1
800x500x(80-130)4988005001/1
900x500x(80-130)4989005001/1
1000x500x(80-130)49810005001/1
1100x500x(80-130)49811005001/1
