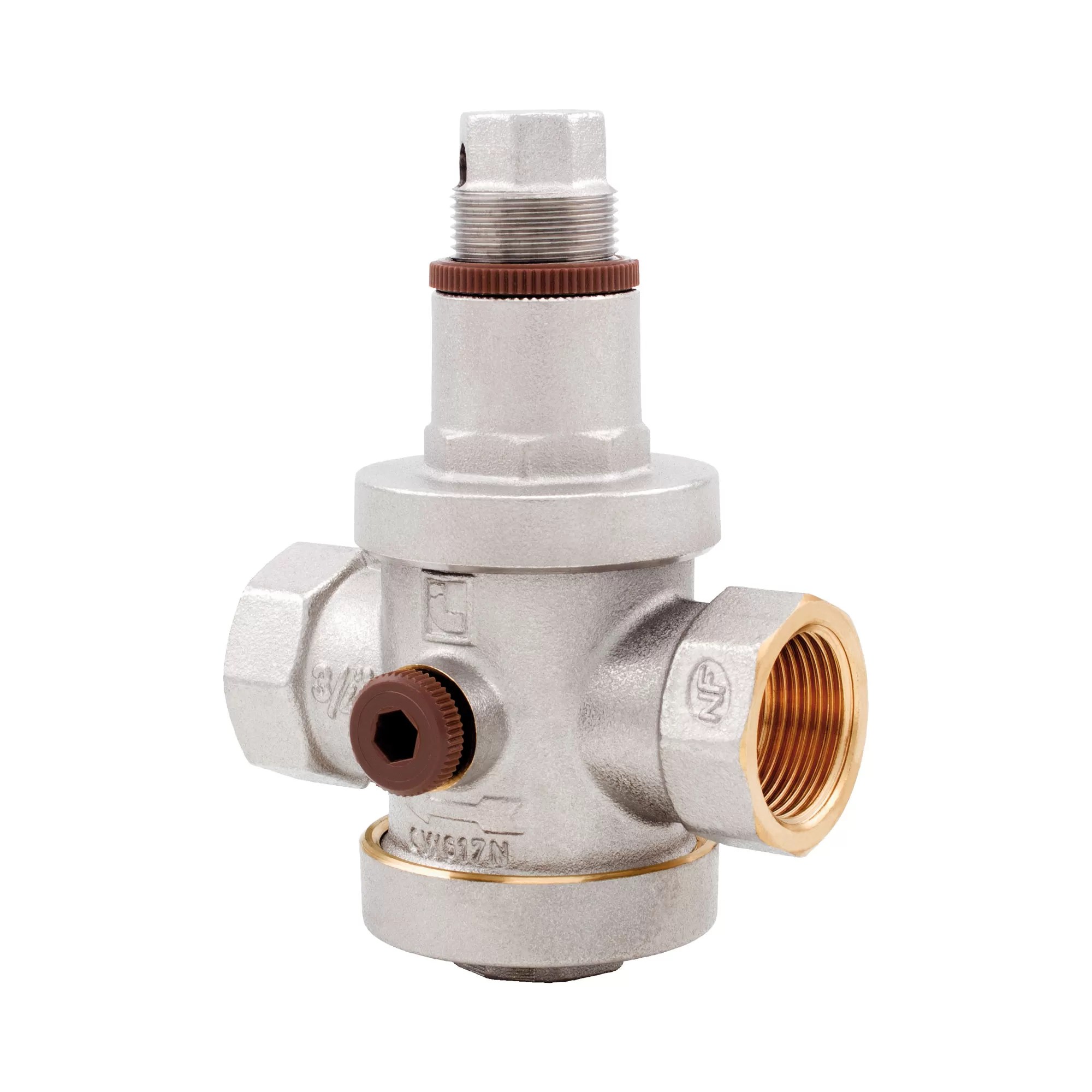

EUROPRESS pressure reducing valve

Compensated piston operation.
Female/female threads.
Body in nickel-plated brass.
Minimum and maximum working temperatures: 0°C, 80°C.
Maximum inlet pressure: 25 bar.
Outlet pressure:
1/2” – 3/4” – 1” between 1 and 5,5 bar.
1”1/4 through 4” between 1 and 6 bar.
Factory preadjustment 3 bar.
Outlet pressure gauge connection 1/4” on both sides.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Available also with NPT thread in the sizes 2”1/2 – 3” – 4”.
NF approved in 1/2 “and 3/4″ sizes.
KC approved in sizes from 1/2″ to 4”.

SizePressureCodePackingSTEP
1/2" (DN 15)25bar/362.5psi14300121/22
3/4" (DN 20)25bar/362.5psi14300341/22
1" (DN 25)25bar/362.5psi14301001/12
1"1/4 (DN 32)25bar/362.5psi14301141/6
1"1/2 (DN 40)25bar/362.5psi14301121/6
2" (DN 50)25bar/362.5psi14302001/3
2"1/2 (DN 65)25bar/362.5psi14302121/2
3" (DN 80)25bar/362.5psi14303001/2
4" (DN 100)25bar/362.5psi14304001/2
