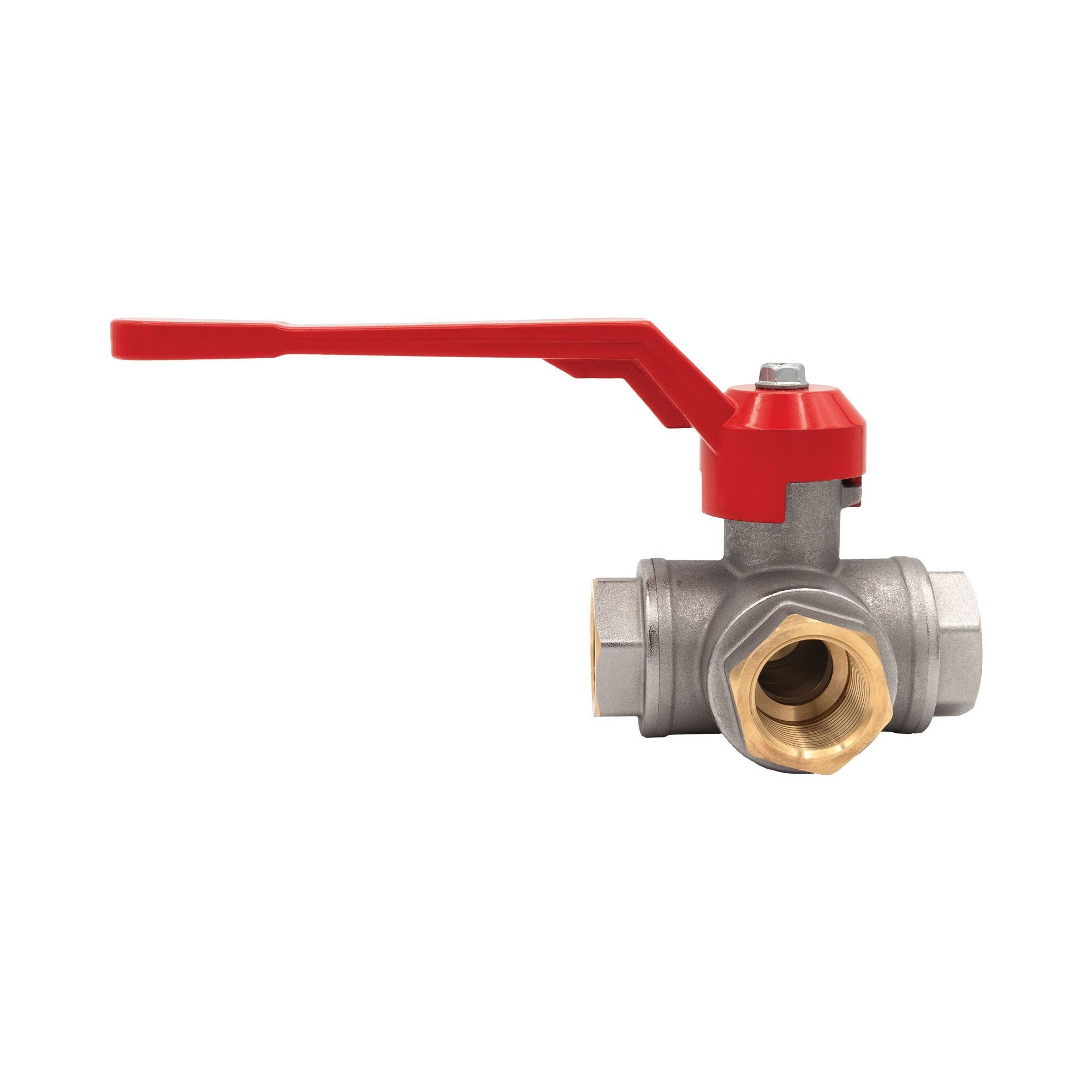

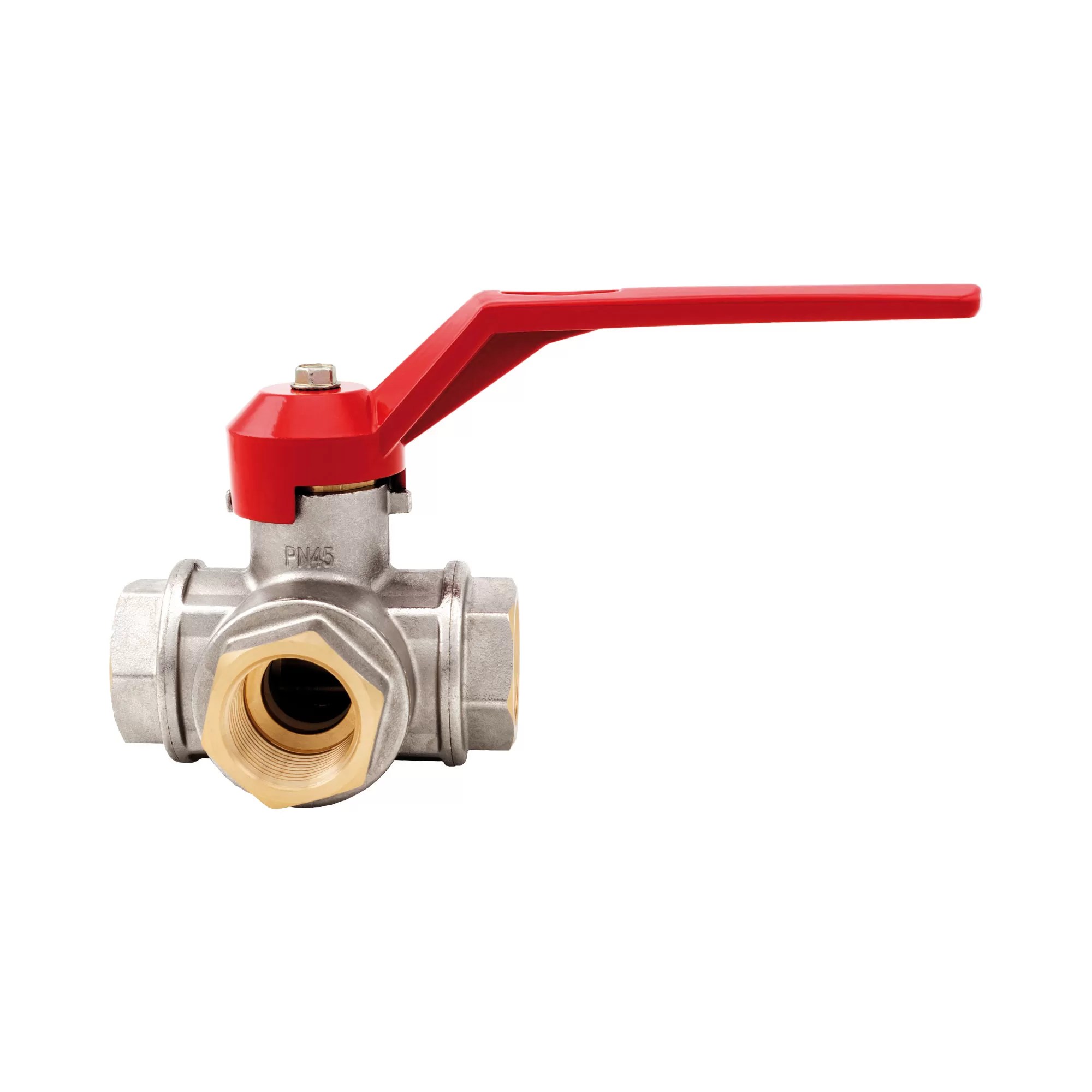

Suitable for domestic water services, heating, air-conditioning plants and compressed air systems.
Female/female/female threads.
Lever handle in aluminium.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -10°C, 120°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
| Size | Pressure | Code | Packing |
|---|---|---|---|
| 1/4" (DN 8) | 55bar/797.5psi | 1280014L | 4/32 |
| 3/8" (DN 10) | 55bar/797.5psi | 1280038L | 4/32 |
| 1/2" (DN 15) | 50bar/725psi | 1280012L | 4/32 |
| 3/4" (DN 20) | 50bar/725psi | 1280034L | 2/16 |
| 1" (DN 25) | 45bar/652.5psi | 1280100L | 2/12 |
| 1"1/4 (DN 32) | 35bar/507.5psi | 1280114L | 2/6 |
| 1"1/2 (DN 40) | 35bar/507.5psi | 1280112L | 2/6 |
| 2" (DN 50) | 35bar/507.5psi | 1280200L | 1/4 |
| Size | Pressure | Code | Packing |
|---|---|---|---|
| 1/4" (DN 8) | 55bar/797.5psi | 1280014T | 4/32 |
| 3/8" (DN 10) | 55bar/797.5psi | 1280038T | 4/32 |
| 1/2" (DN 15) | 50bar/725psi | 1280012T | 4/32 |
| 3/4" (DN 20) | 50bar/725psi | 1280034T | 2/16 |
| 1" (DN 25) | 45bar/652.5psi | 1280100T | 2/12 |
| 1"1/4 (DN 32) | 35bar/507.5psi | 1280114T | 2/6 |
| 1"1/2 (DN 40) | 35bar/507.5psi | 1280112T | 2/6 |
| 2" (DN 50) | 35bar/507.5psi | 1280200T | 1/4 |
