610

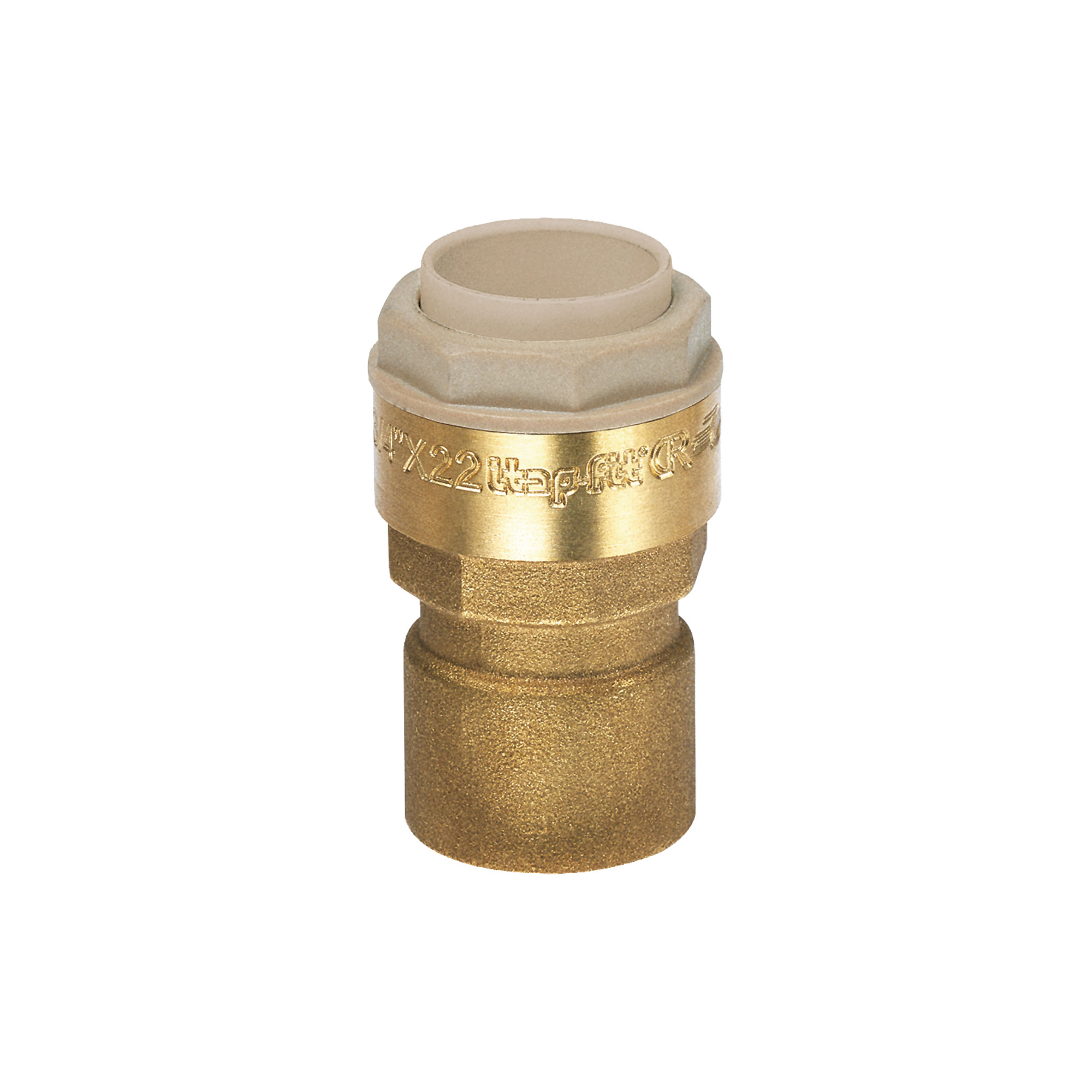

Straight female connector

Bodies in de-zincification resistant brass (DZR).
Minimum and maximum working temperatures: -20°C, 120°C (allowed peaks of 150°C).
Nominal pressure:
Copper pipe: 20bar at 25°C, 10bar at 90°C.
PEX and polybutylene pipes: 12bar at 25°C, 5 bar at 90°C.
Threads: ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizeCodePacking
12x3/8"610B03801218/378
12x1/2"610B01201214/294
14x1/2"610B01201414/294
15x1/2"610B01201514/294
16x1/2"610B01201614/294
18x1/2"610B0120187/210
18x3/4"610B0340187/210
20x1/2"610B01202010/210
22x3/4"610B0340225/150
25x3/4"610B0340258/168
28x1"610B1000285/95

Range PUSH-FIT FITTINGS FOR COPPER, PEX AND POLYBUTYLENE
