650

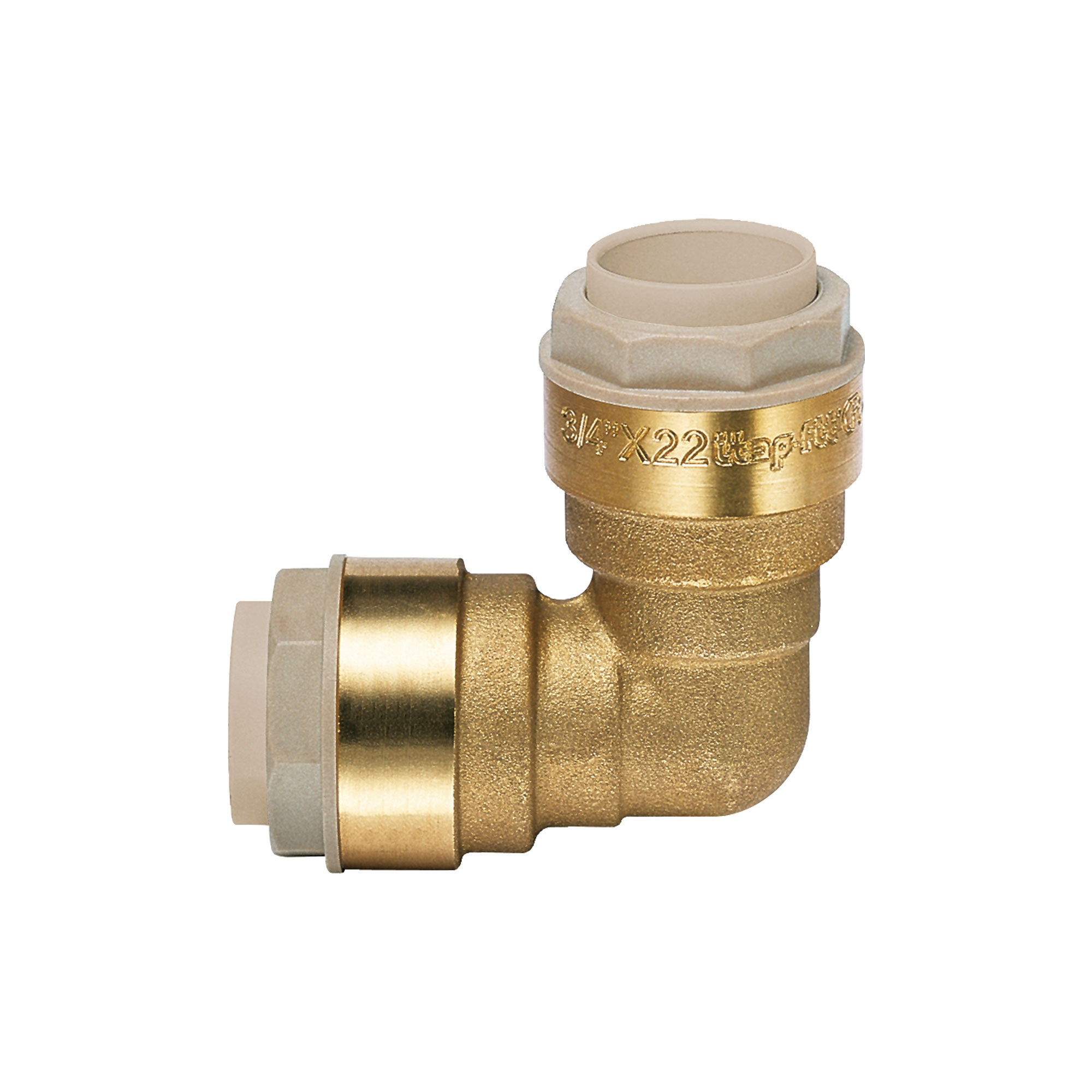

Elbow coupling

Bodies in de-zincification resistant brass (DZR).
Minimum and maximum working temperatures: -20°C, 120°C (allowed peaks of 150°C).
Nominal pressure:
Copper pipe: 20bar at 25°C, 10bar at 90°C.
PEX and polybutylene pipes: 12bar at 25°C, 5 bar at 90°C.
Threads: ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizeCodePacking
12650C00001212/360
14650C00001410/300
15650C00001510/210
16650C00001610/240
18650C00001810/160
20650C0000208/152
22650C0000228/152
25650C0000256/114
28650C0000285/95

Range PUSH-FIT FITTINGS FOR COPPER, PEX AND POLYBUTYLENE
