615

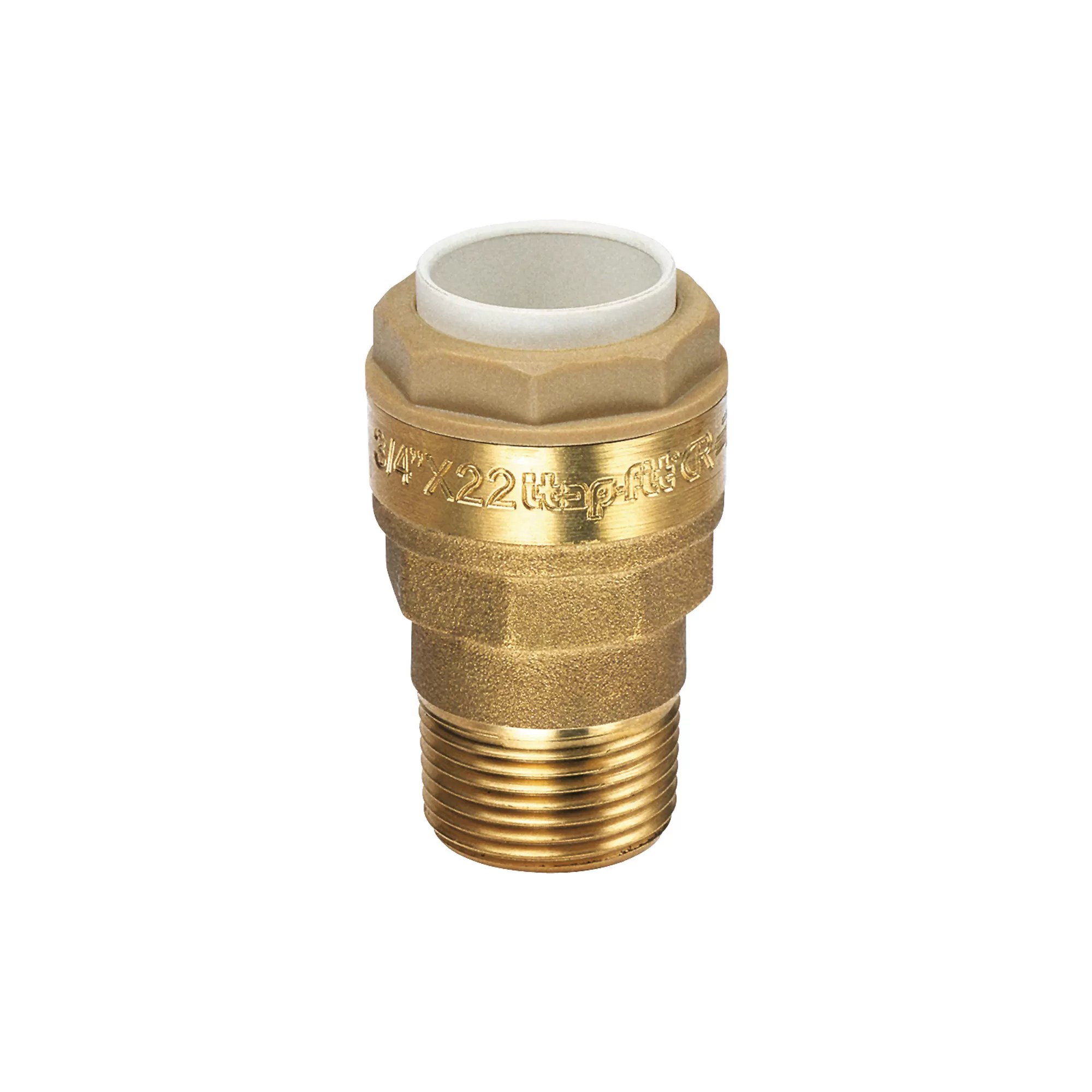

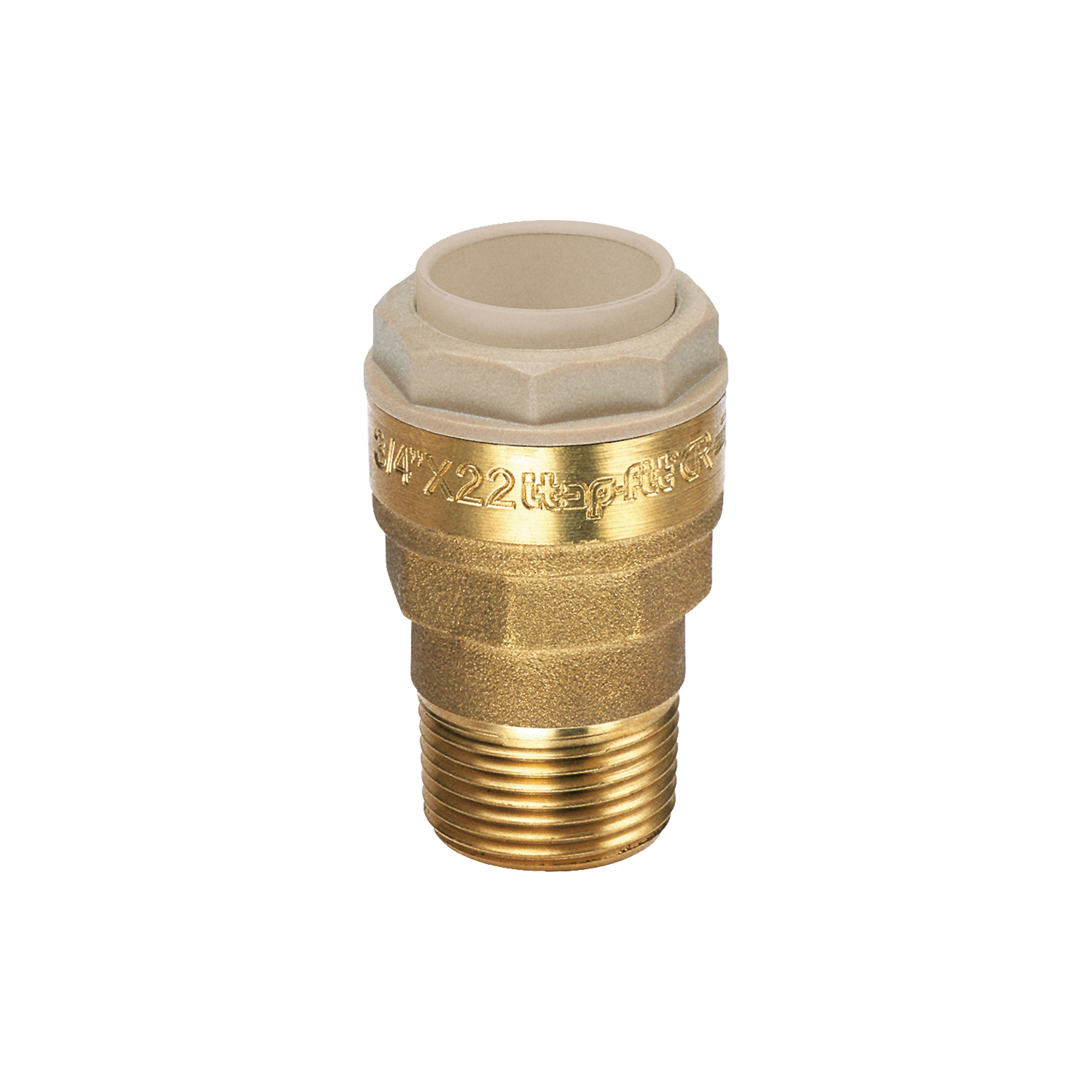

Straight male connector

Bodies in de-zincification resistant brass (DZR).
Minimum and maximum working temperatures: -20°C, 120°C (allowed peaks of 150°C).
Nominal pressure:
Copper pipe: 20bar at 25°C, 10bar at 90°C.
PEX and polybutylene pipes: 12bar at 25°C, 5 bar at 90°C.
Threads: ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizeCodePacking
12x3/8"615B03801224/720
12x1/2"615B01201218/378
14x3/8"615B03801418/378
14x1/2"615B01201418/378
15x1/2"615B01201518/378
16x1/2"615B01201615/450
18x1/2"615B01201815/240
18x3/4"615B03401815/240
20x1/2"615B01202014/224
22x3/4"615B03402212/192
25x3/4"615B03402511/176
28x1"615B1000288/152

Range PUSH-FIT FITTINGS FOR COPPER, PEX AND POLYBUTYLENE
