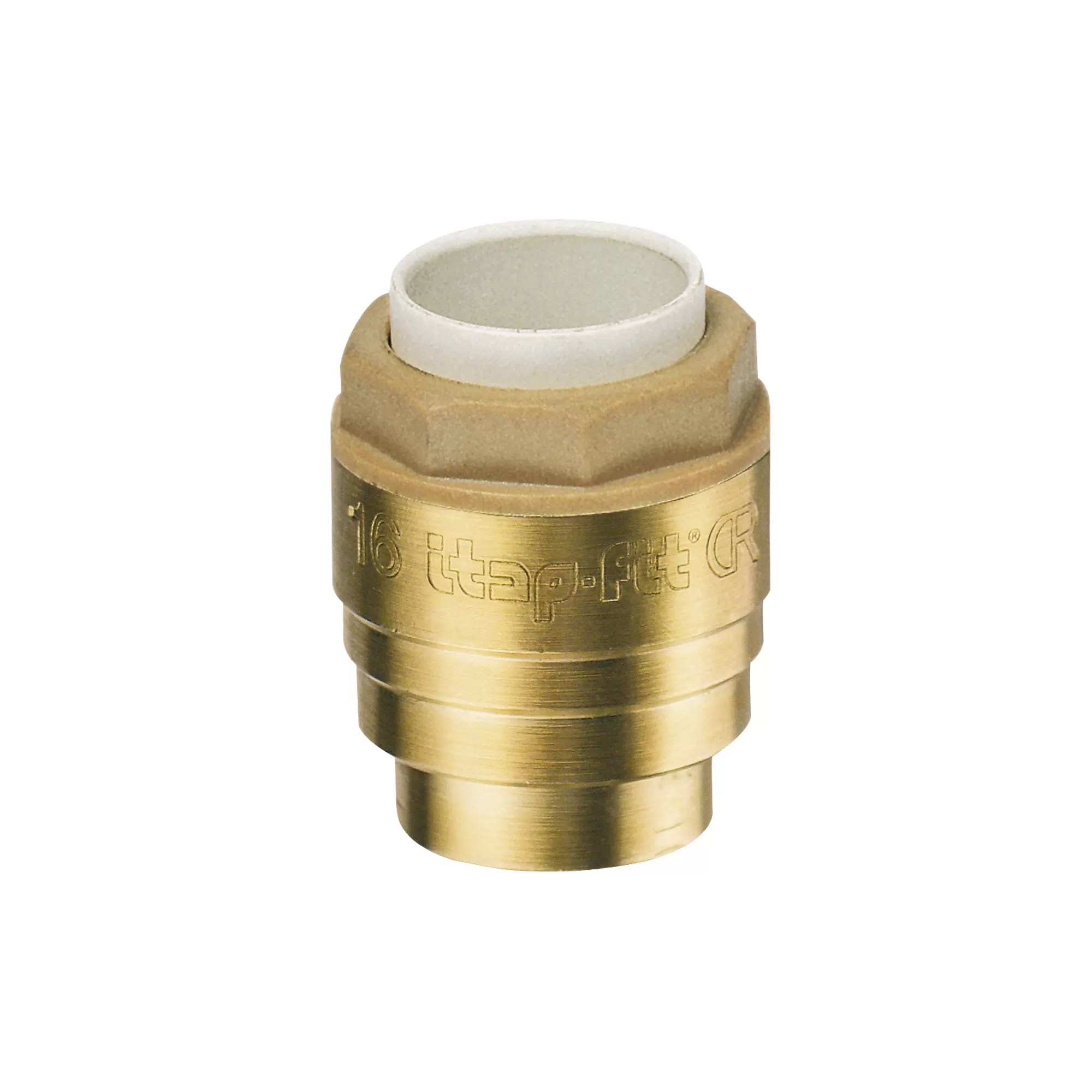

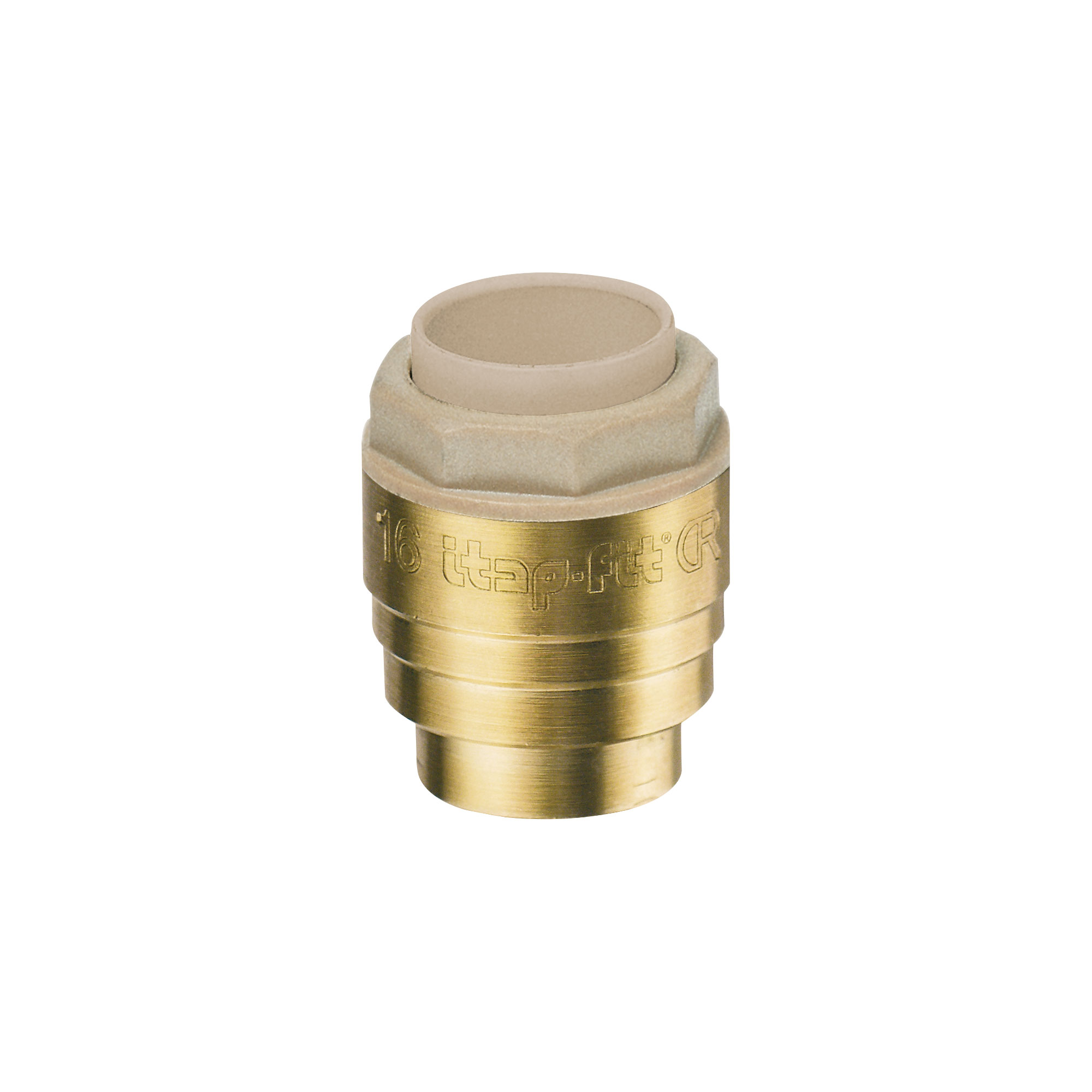

625

Stop end

Body in brass.
Minimum and maximum working temperatures: -20°C, 120°C (allowed peaks of 150°C).
Nominal pressure:
Copper pipe: 20bar at 25°C, 10bar at 90°C.
PEX and polybutylene pipes: 12bar at 25°C, 5 bar at 90°C.
Threads: ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).
Suitable as PLUG IN ORDER TO TEST INSTALLATIONS with copper, PEX, PB, multilayer pipes.
The fitting is usable again.

SizeCodePacking
12625C00001230/630
14625C00001425/525
15625C00001525/525
16625C00001625/525
18625C00001816/336
20625C00002014/294
22625C0000228/240

Range PUSH-FIT FITTINGS FOR COPPER, PEX AND POLYBUTYLENE
