630

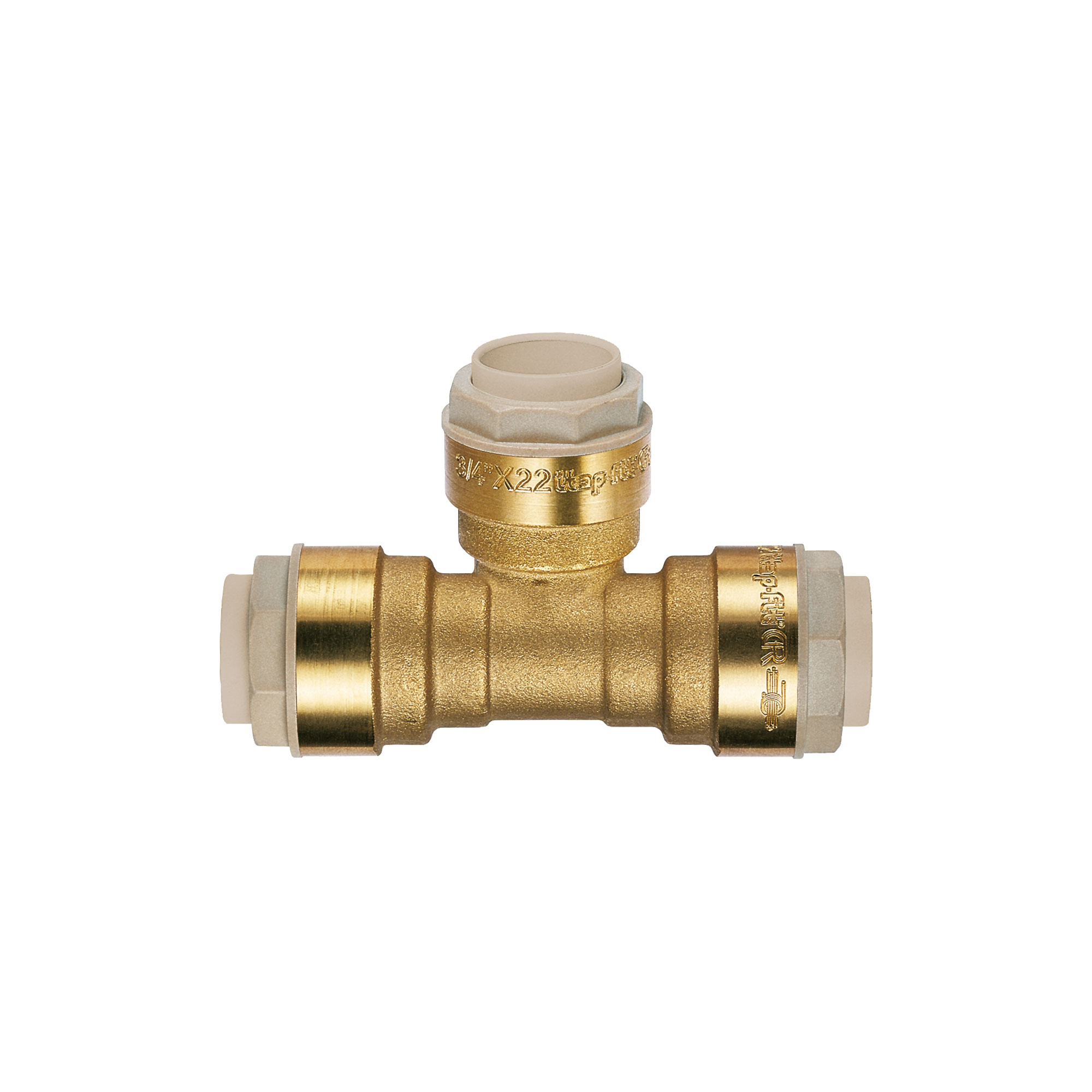

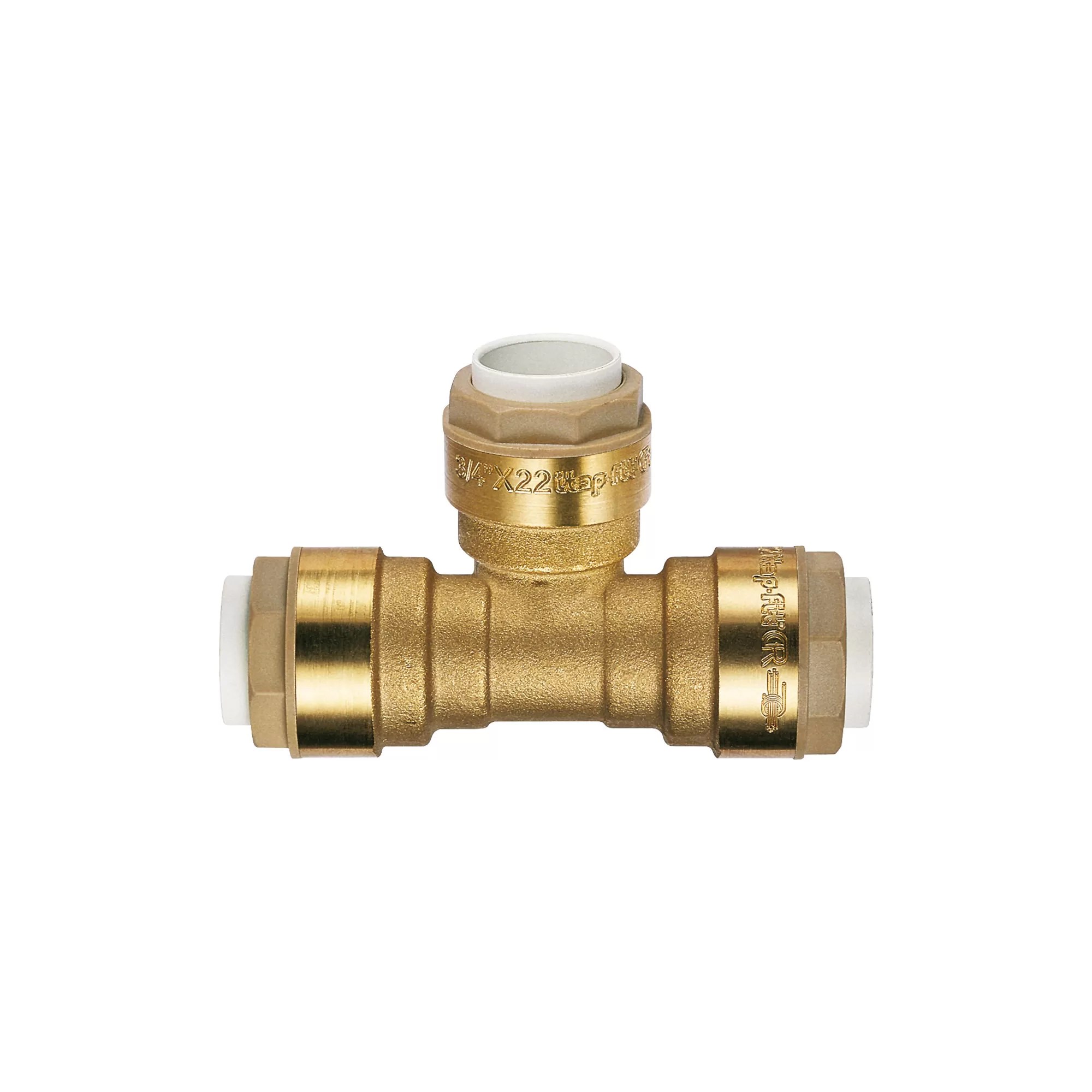

Equal T coupling

Bodies in de-zincification resistant brass (DZR).
Minimum and maximum working temperatures: -20°C, 120°C (allowed peaks of 150°C).
Nominal pressure:
Copper pipe: 20bar at 25°C, 10bar at 90°C.
PEX and polybutylene pipes: 12bar at 25°C, 5 bar at 90°C.
Threads: ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizeCodePacking
12x12x12630C0000128/240
14x14x14630C0000146/180
15x15x15630C0000156/180
16x16x16630C0000166/144
18x18x18630C0000186/96
20x20x20630C0000205/95
22x22x22630C0000225/95
25x25x25630C0000255/65
28x28x28630C0000284/72

Range PUSH-FIT FITTINGS FOR COPPER, PEX AND POLYBUTYLENE
