640

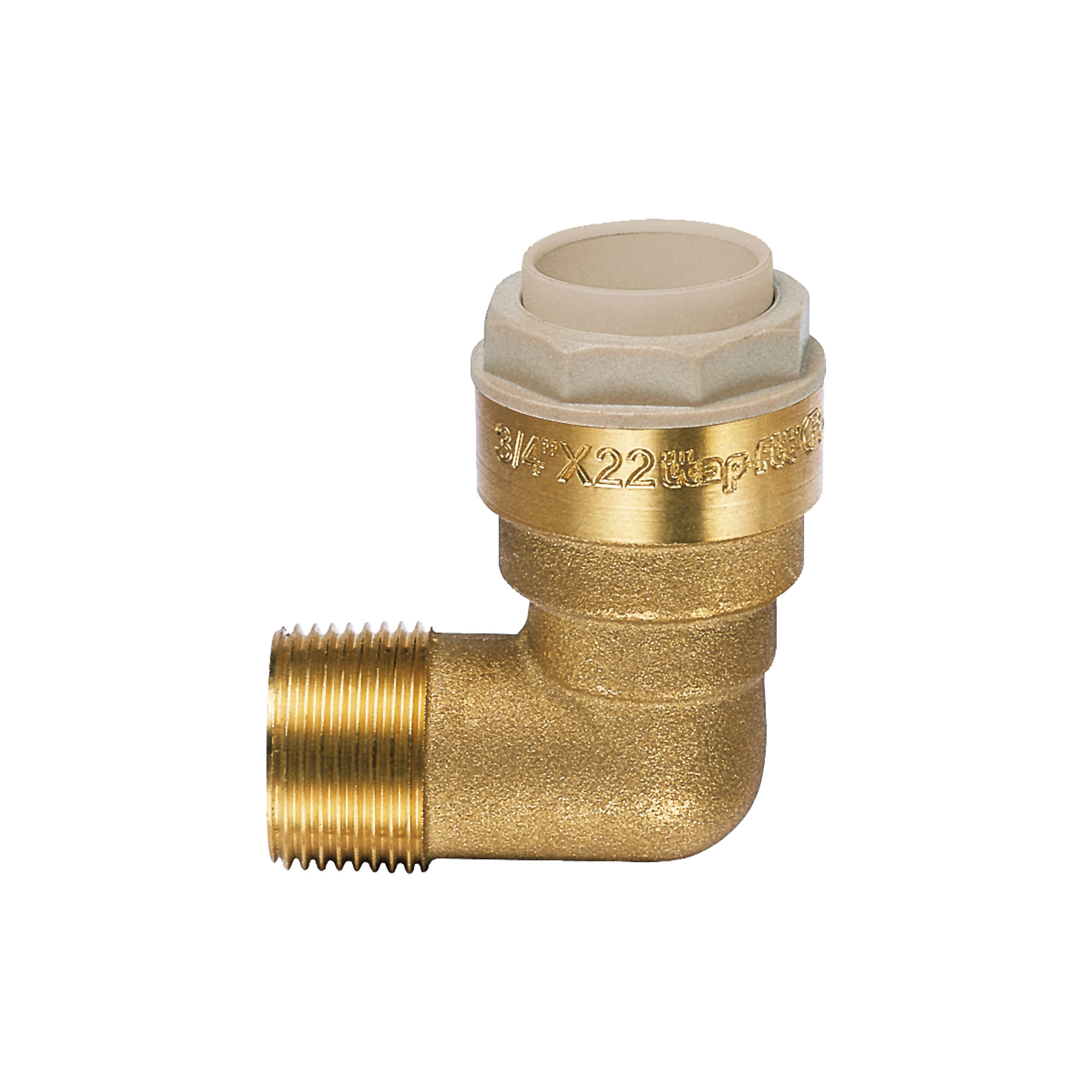

Male elbow

Bodies in de-zincification resistant brass (DZR).
Minimum and maximum working temperatures: -20°C, 120°C (allowed peaks of 150°C).
Nominal pressure:
Copper pipe: 20bar at 25°C, 10bar at 90°C.
PEX and polybutylene pipes: 12bar at 25°C, 5 bar at 90°C.
Threads: ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizeCodePacking
12x3/8"640B03801212/360
12x1/2"640B01201212/360
14x1/2"640B01201412/360
15x1/2"640B01201512/360
16x1/2"640B01201610/300
18x1/2"640B01201810/240
18x3/4"640B03401810/240
20x1/2"640B01202010/240
22x3/4"640B0340228/192
25x3/4"640B0340258/128
28x1"640B1000286/114

Range PUSH-FIT FITTINGS FOR COPPER, PEX AND POLYBUTYLENE
