635

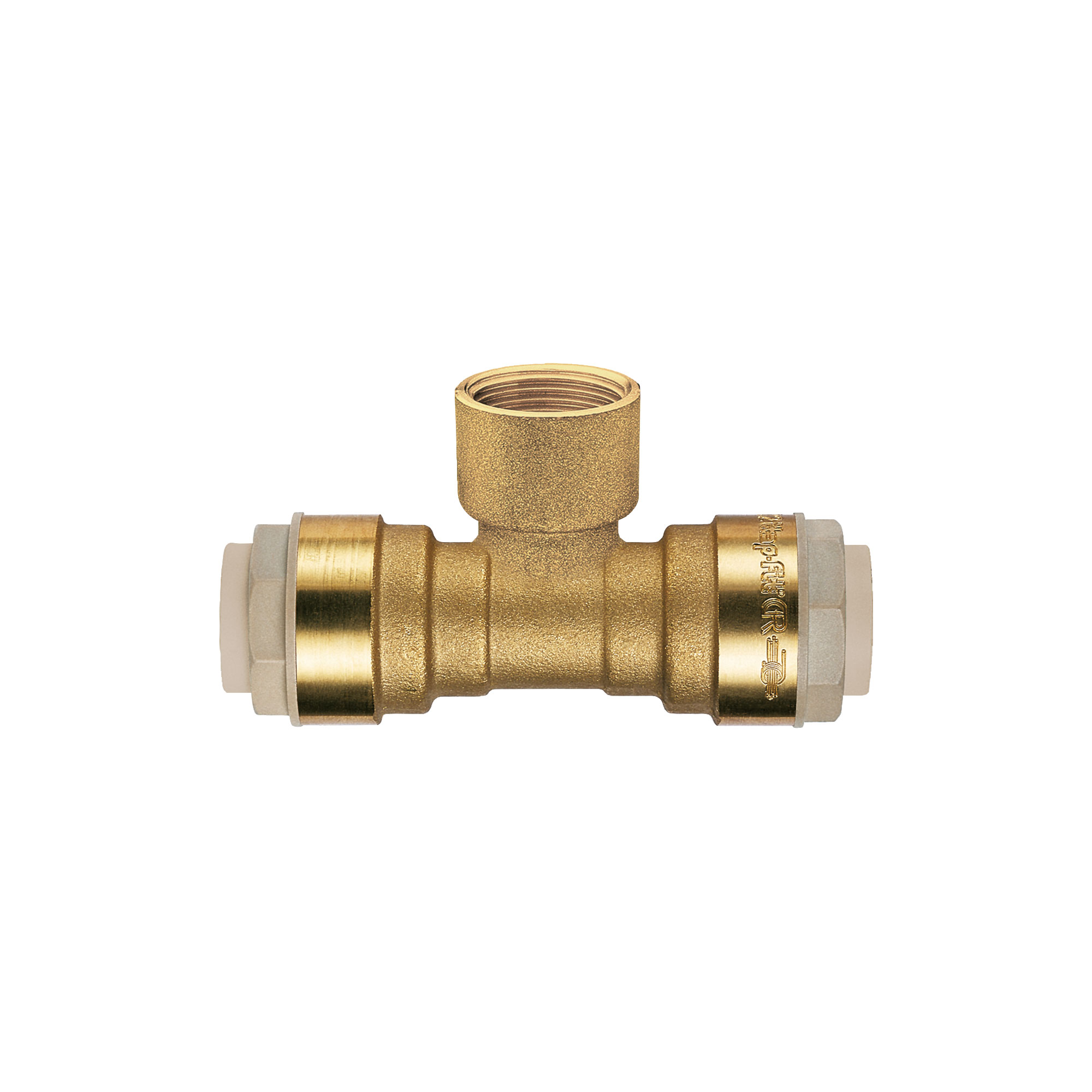

Female branch T coupling

Bodies in de-zincification resistant brass (DZR).
Minimum and maximum working temperatures: -20°C, 120°C (allowed peaks of 150°C).
Nominal pressure:
Copper pipe: 20bar at 25°C, 10bar at 90°C.
PEX and polybutylene pipes: 12bar at 25°C, 5 bar at 90°C.
Threads: ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizeCodePacking
14x1/2"635B0120146/180
15x1/2"635B0120156/180
16x1/2"635B0120166/180
18x1/2"635B0120186/144
18x3/4"635B0340186/144
20x1/2"635B0120208/104
22x3/4"635B0340226/108
25x3/4"635B0340256/60
28x1"635B1000284/72

Range PUSH-FIT FITTINGS FOR COPPER, PEX AND POLYBUTYLENE
