620

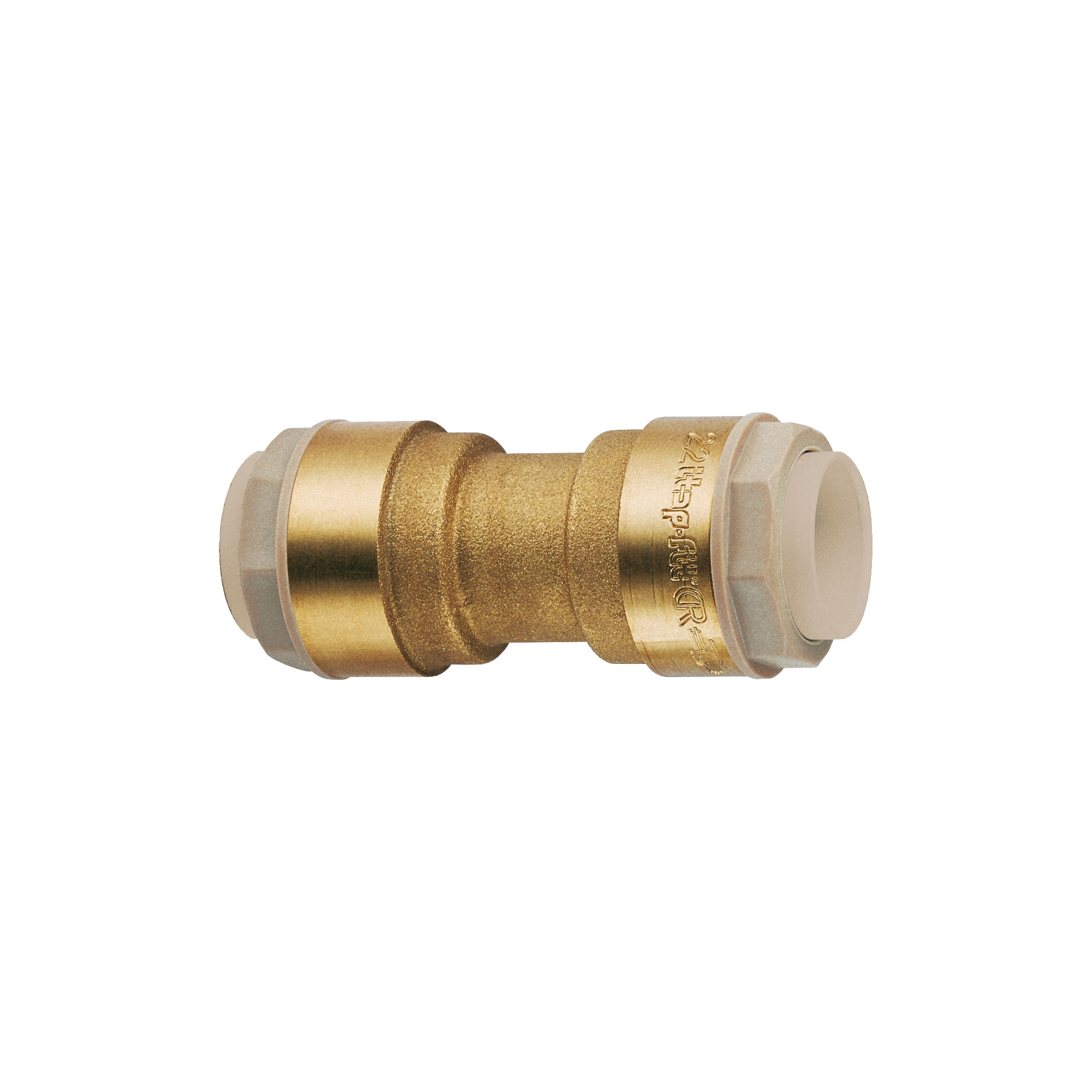

Straight coupling

Bodies in de-zincification resistant brass (DZR).
Minimum and maximum working temperatures: -20°C, 120°C (allowed peaks of 150°C).
Nominal pressure:
Copper pipe: 20bar at 25°C, 10bar at 90°C.
PEX and polybutylene pipes: 12bar at 25°C, 5 bar at 90°C.
Threads: ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizeCodePacking
12620C00001212/360
14620C00001412/252
15620C00001512/252
16620C00001612/252
18620C00001812/192
20620C00002010/130
22620C0000228/128
25620C0000257/112
28620C0000286/114

Range PUSH-FIT FITTINGS FOR COPPER, PEX AND POLYBUTYLENE
