648

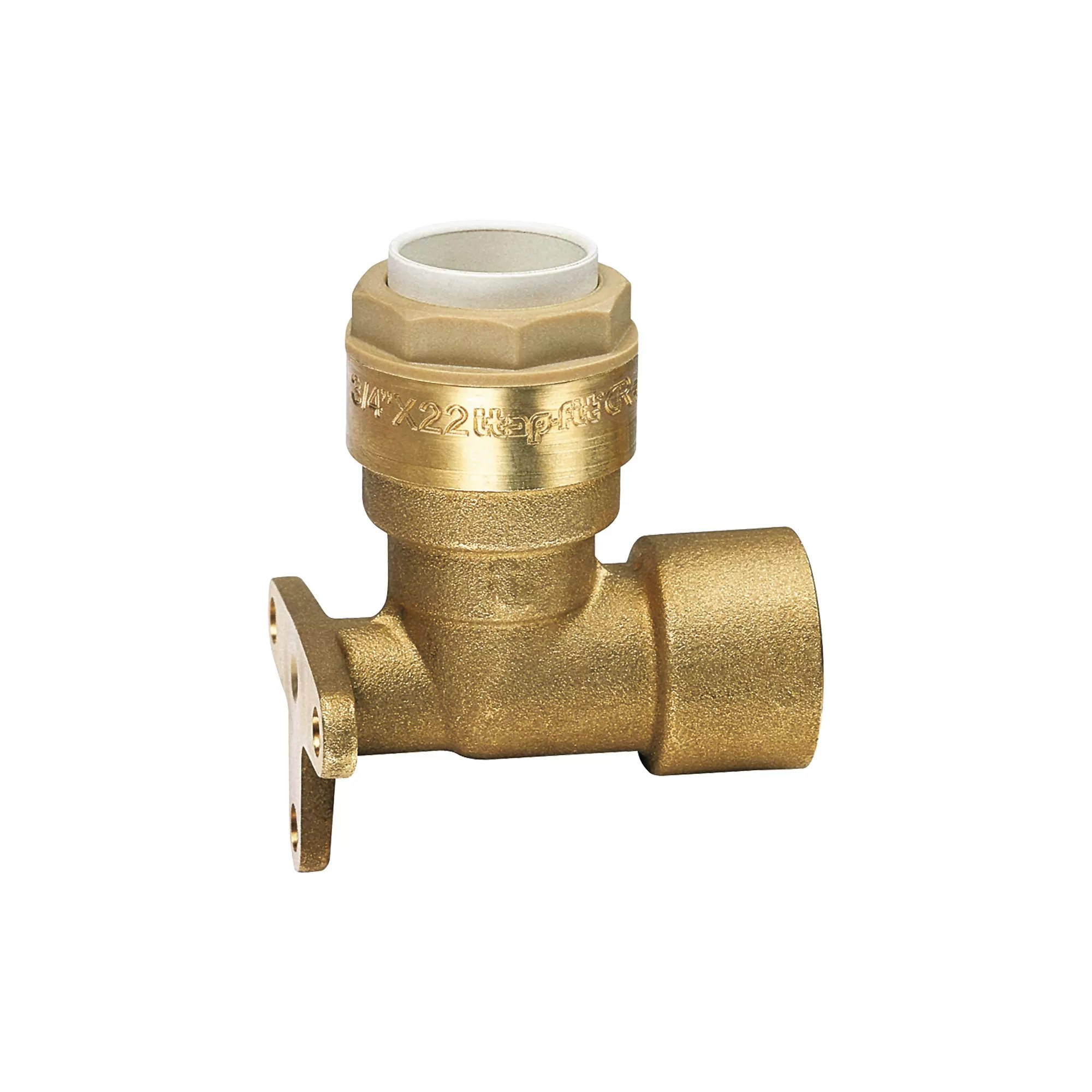

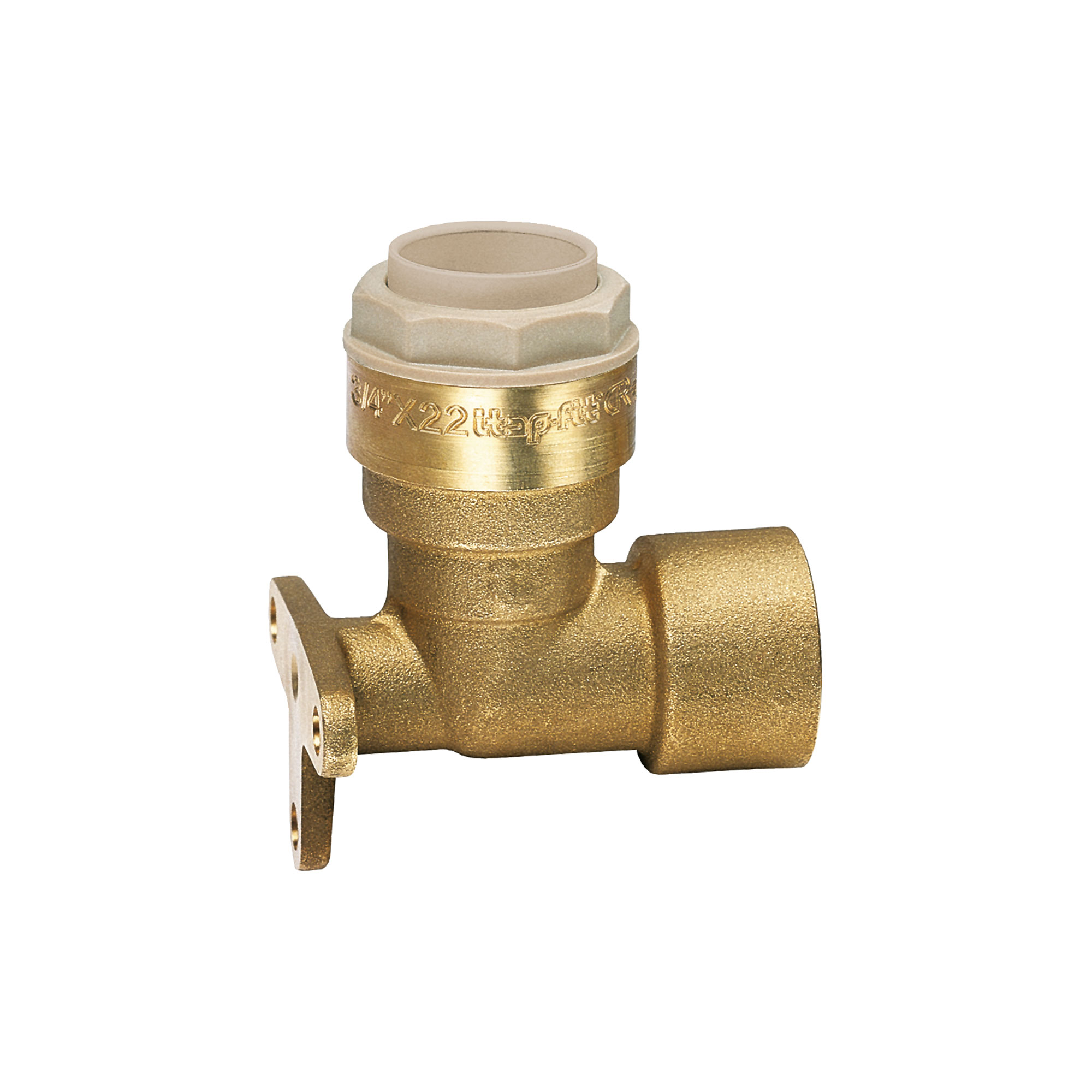

Backplate female elbow

Bodies in de-zincification resistant brass (DZR).
Minimum and maximum working temperatures: -20°C, 120°C (allowed peaks of 150°C).
Nominal pressure:
Copper pipe: 20bar at 25°C, 10bar at 90°C.
PEX and polybutylene pipes: 12bar at 25°C, 5 bar at 90°C.
Threads: ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizeCodePacking
14x1/2"648B0120146/144
15x1/2"648B0120156/144
16x1/2"648B0120166/144

Range PUSH-FIT FITTINGS FOR COPPER, PEX AND POLYBUTYLENE
