618

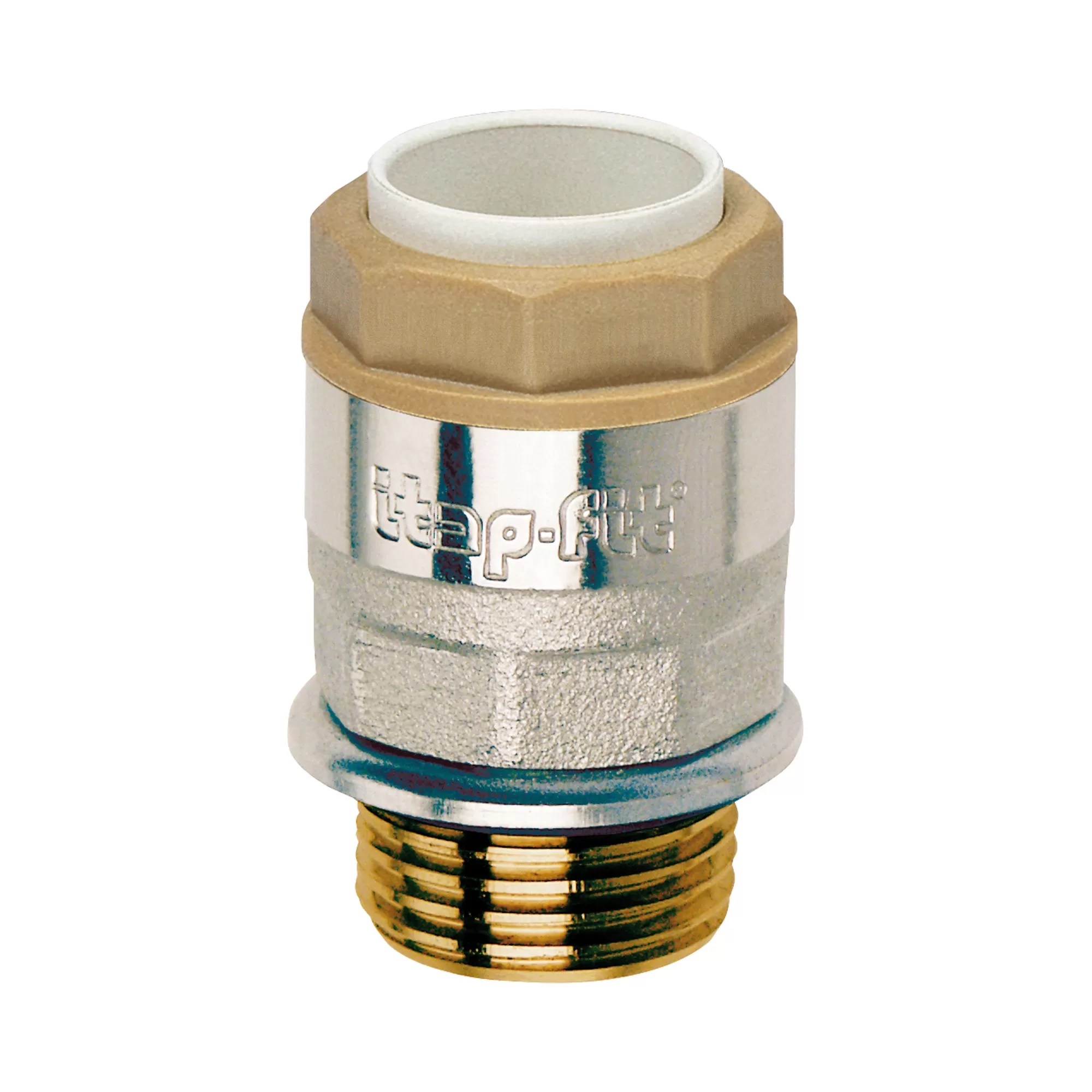

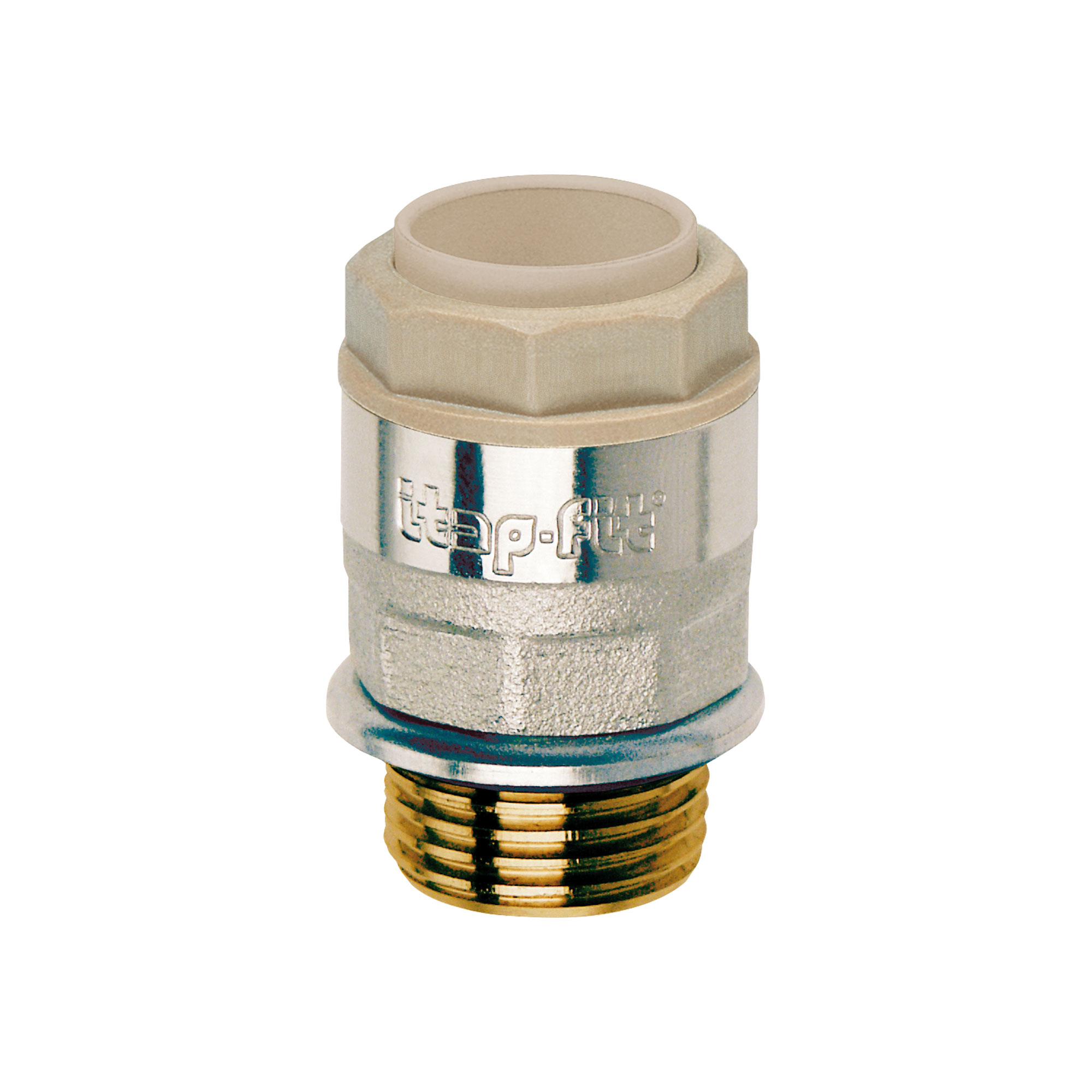

Nickel-plated straight male connector with an o-ring

Designed to be used with Itap radiator valves, either manual or thermostatic, with a female thread, and with simple manifolds, with female outlets.
Of course, it may be used with any radiator valve or manifold, as long as they are equipped with 1/2” female connections.
Body in nickel-plated brass.
O-ring in EPDM.
Minimum and maximum working temperatures: -20°C, 120°C (allowed peaks of 150°C).
Nominal pressure: Copper pipe: 20bar at 25°C, 10bar at 90°C.
PEX and polybutylene pipes: 12bar at 25°C, 5 bar at 90°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizeCodePacking
12x1/2"618001201218/378
14x1/2"618001201418/378
16x1/2"618001201615/450

Range PUSH-FIT FITTINGS FOR COPPER, PEX AND POLYBUTYLENE
